KM04-04

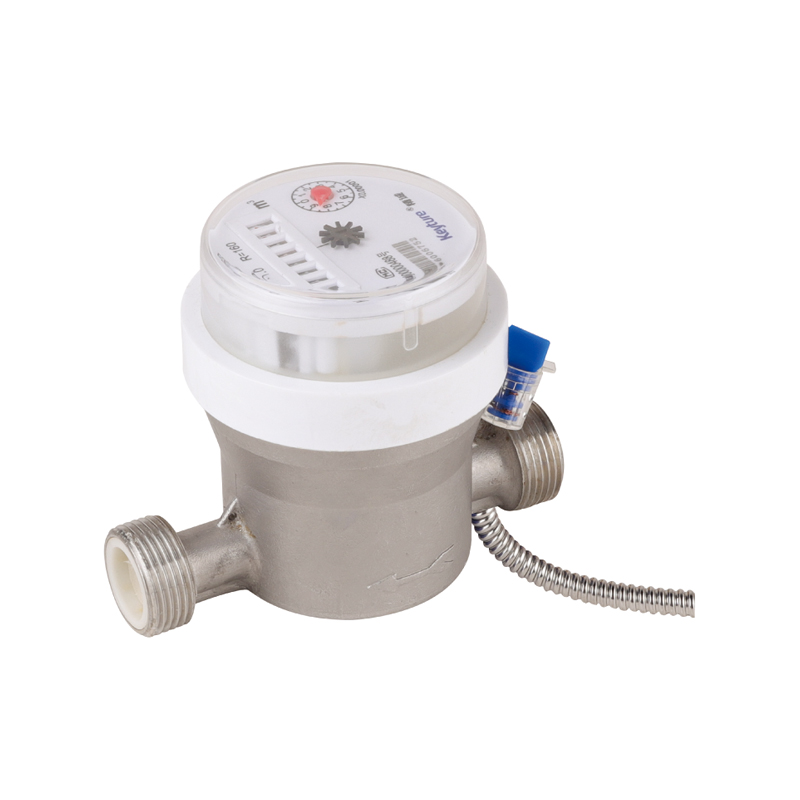

Used for household or residential units to measure, memorize and display the consumption of drinking cold water flowing through the pipeline. By using photoelectric direct reading module to realize electronic sampling and upload the data to the base meter counting device, the metering data of the water meter can be accurately read in real time, and the metering data can be sent to various intelligent meter reading systems through wired transmission.
Description
1. Features
● Adopting volumetric rotary piston principle of measurement, high precision.
● Dry type register, anti-magnetic interference, long-term clear reading.
● 304 Stainless steel body
● Climate and EMC class B, E1
2. Electronic Technique
|
Working Voltage |
Working Temperature |
Working Current |
Output |
|
DC9-15V(RS-485)/DC24-36V(M-BUS) |
-10~45 ℃ |
≤9mA |
RS-485,M-BUS |
3. Head Loss Curve

4. Accuracy Error Curve

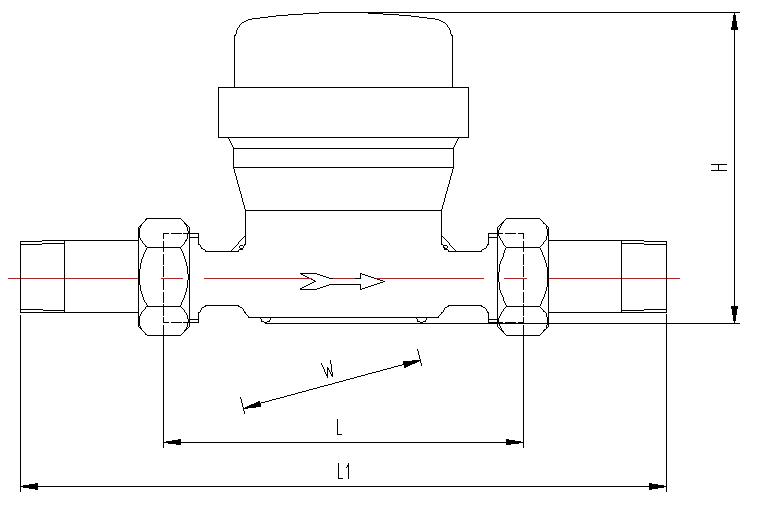

5. Installation Dimension

|
Item No |
LXHS-8 |
|
|
L1 |
mm |
205 |
|
L |
mm |
110 |
|
H |
mm |
92 |
|
W |
mm |
75 |
|
Connection Thread |
D(mm) |
G3/4" |
|
d(mm) |
R1/2 |
|
|
Weight |
with unions(kg) |
0.8KG |
|
without unions(kg) |
||
6. Main Technical Parameter
|
Model number |
LXHS-8 |
|
|
Nominal diameter (DN)[mm] |
8 |
|
|
Ratio Q3/Q1 |
R160 |
R200 |
|
Overload flow rate (Q4) [m³/h] |
1.25 |
1.25 |
|
Permanent flow rate (Q3) [m³/h] |
1 |
1 |
|
Transitional flow rate (Q2) [m³/h] |
0.01 |
0.008 |
|
Minimum flow rate (Q1) [m³/h] |
0.00625 |
0.005 |
|
Accuracy class |
2 |
|
|
Maximum permissible error for the lower flow rate zone (MPEι) |
±5% |
|
|
Maximum permissible error for the upper flow rate zone (MPEμ) |
±2% for water having a temperature ≤30℃ ±3% for water having a temperature >30℃ |
|
|
Temperature class |
T30,T50 |
|
|
Water pressure classes |
MAP 16 |
|
|
Pressure-loss classes |
△P63 |
|
|
Indicating range[m³] |
99 999 |
|
|
Resolution of the indicating device[m³] |
0.00005 |
|
|
Flow profile sensitivity classes |
U10, D5 |
|
|
Orientation limitation |
HORIZONTAL |
|
