KM04-05

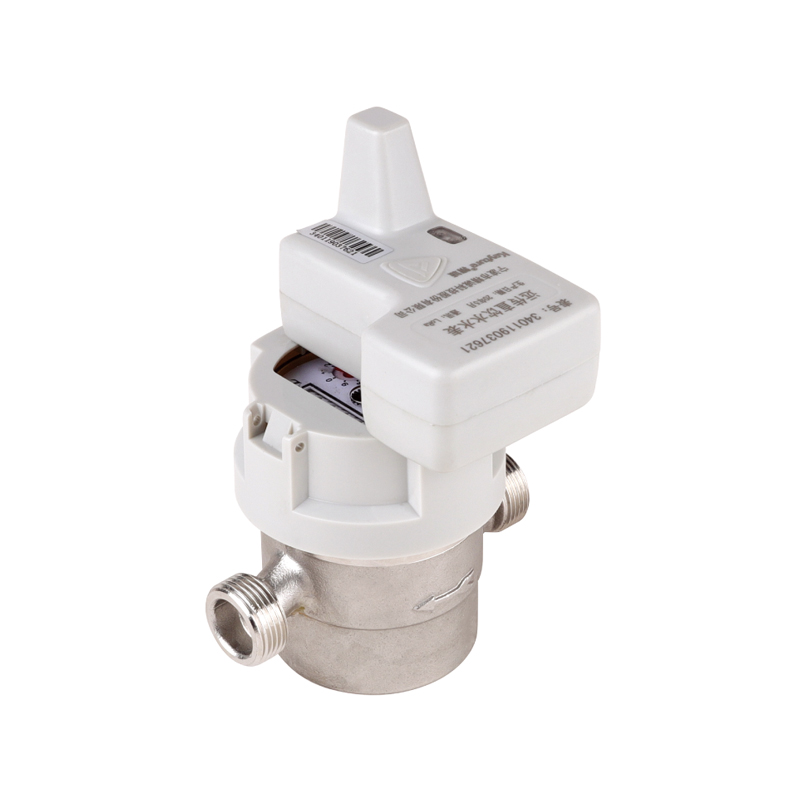

Used for household or residential units to measure, memorize and display the consumption of drinking cold water flowing through the pipeline. The biggest highlight of the water meter is the periodic reporting function, which is carried out every half hour to check the user's water consumption. The data is stored and reported once a day. The reported data is a set of water consumption data within 24 hours. In addition, you can set the reporting period as required.
Description
1. Features
● Adopting volumetric rotary piston principle of measurement, high precision.
● Dry type register, anti-magnetic interference, long-term clear reading.
● 304 Stainless steel body.
● Climate and EMC class B, E1.
2. Electronic Technique
|
Datacomms |
Static current |
Report |
Operating frequency |
Transmitted power |
Receive sensitivity |
|
Lora |
20μA |
Hall\Reed switch |
470-510MHz |
≤20dBm |
-136+1dBm |
|
NB-lot |
10μA |
Hall\Reed switch |
B1,B2,B5,B8,NB-lot |
≤23dBm |
-131+1dBm |
3. Head Loss Curve
4. Accuracy Error Curve
5. Installation Dimension
|
Item No |
LXHS-8 |
|
|
L1 |
mm |
205 |
|
L |
mm |
110 |
|
H |
mm |
92 |
|
W |
mm |
75 |
|
Connection Thread |
D(mm) |
G3/4" |
|
d(mm) |
R1/2 |
|
|
Weight |
with unions(kg) |
0.6KG |
|
without unions(kg) |
||
6. Main Technical Parameter
|
Model number |
LXHS-8 |
|
|
Nominal diameter (DN)[mm] |
8 |
|
|
Ratio Q3/Q1 |
R160 |
R200 |
|
Overload flow rate (Q4) [m³/h] |
1.25 |
1.25 |
|
Permanent flow rate (Q3) [m³/h] |
1 |
1 |
|
Transitional flow rate (Q2) [m³/h] |
0.01 |
0.008 |
|
Minimum flow rate (Q1) [m³/h] |
0.00625 |
0.005 |
|
Accuracy class |
2 | |
|
Maximum permissible error for the lower flow rate zone (MPEι) |
±5% | |
|
Maximum permissible error for the upper flow rate zone (MPEμ) |
±2% for water having a temperature ≤30℃ ±3% for water having a temperature >30℃ |
|
|
Temperature class |
T30, T50 | |
|
Water pressure classes |
MAP 16 | |
|
Pressure-loss classes |
△P63 | |
|
Indicating range[m³] |
99 999 | |
|
Resolution of the indicating device[m³] |
0.00005 | |
|
Flow profile sensitivity classes |
U10, D5 | |
|
Orientation limitation |
HORIZONTAL | |
