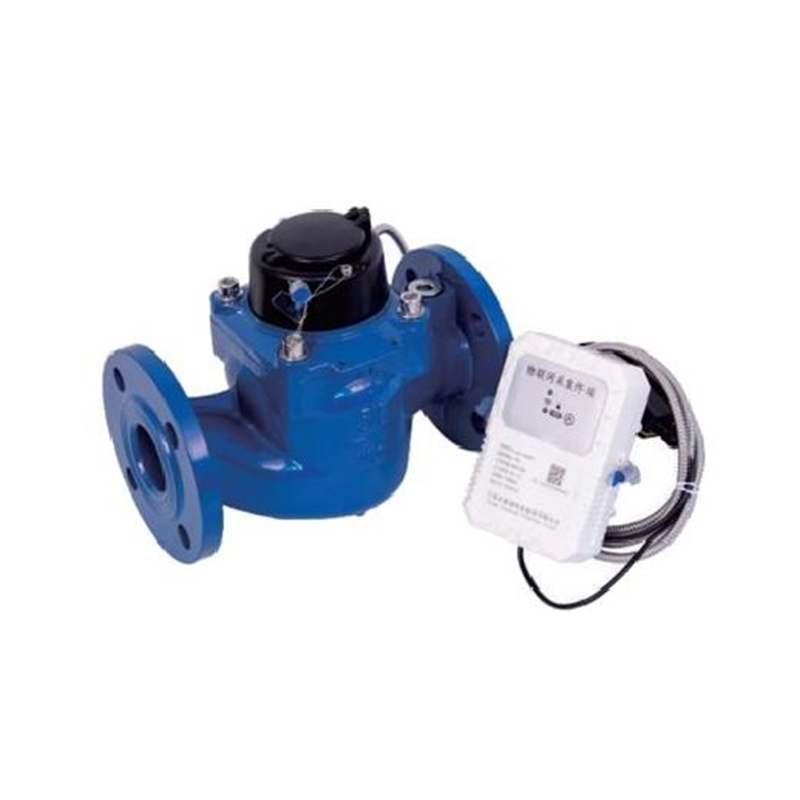

KM06-05
Dry magnetic transmission structure ensures a clean and clear display of the counter.




          Description
1. Application
Measuring, memorizing and displaying the volume of cold(hot) water passing through the pipeline.
2. Feature
● Directly read word wheel data, basically achieving "zero" error copy.
● Low power consumption, power supply only when reading.
● Electronic unit completely sealed in the counter, no erosion from external water.
● Advanced data coding and verification, high communication reliability.
● Using bus mode, easy installation, less maintenance, cost saving.
● Meet EMC, ESD, EMI and other electronic products EMC design requirements.
● Use fault diagnosis and shutdown technology to ensure the whole network's safety.
● Networking with upper computer system, can remote automatic meter reading, and manual centralized meter reading.
3. Main Technical Data
Water meter temperature grade: T30,T50,T70,T90
Pressure grade: MAP10/MAP16
Pressure loss grade: △P63
Upstream disturbance grade: U10
Downstream disturbance grade: D5
• Install environment: B
• Electromagnetic environment: E1
• Max permissible tolerance
a. Q1≤ Q ≤ Q3 :±5%
b. Q2≤ Q ≤ Q4: ±2% (hot water meter±3%)

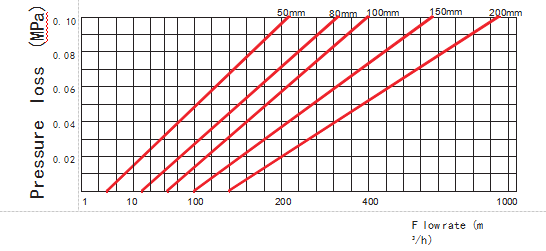

4. Head Loss Curve

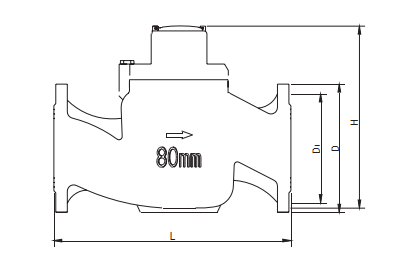

5. Installation Dimension
| Diameter mm | L | D | D1 | H | Connection flange | Weight |
| mm | Dxn | kg | ||||
| 40 | 245 |
 |
 | 220 |
 | 7 |
| 50 | 280 | 165 | 125 | 228 | 4xΦ19 | 15 |
| 65 | 300 | 185 | 145 | 238 | 4xΦ19 | 16.8 |
| 80 | 370 | 200 | 160 | 290 | 4xΦ19 | 29 |
| 100 | 370 | 220 | 180 | 306 | 8xΦ19 | 31 |
| 150 | 500 | 285 | 240 | 445 | 8xΦ23 | 78 |
| 200 | 500 | 340 | 295 | 564 | 8xΦ23 | 120 |
| Datacomms | Static current | Report | Operating frequency | Transmitted power | Receive sensitivity |
| Lora | 20μA | Hall, reed switch | 470-510MHz | ≤20dBm | -136+1dBm |
| NB-lot | 10μA | Hall, reed switch | B1,B2,B5,B8,NB-lot | ≤23dBm | -131+1dBm |
