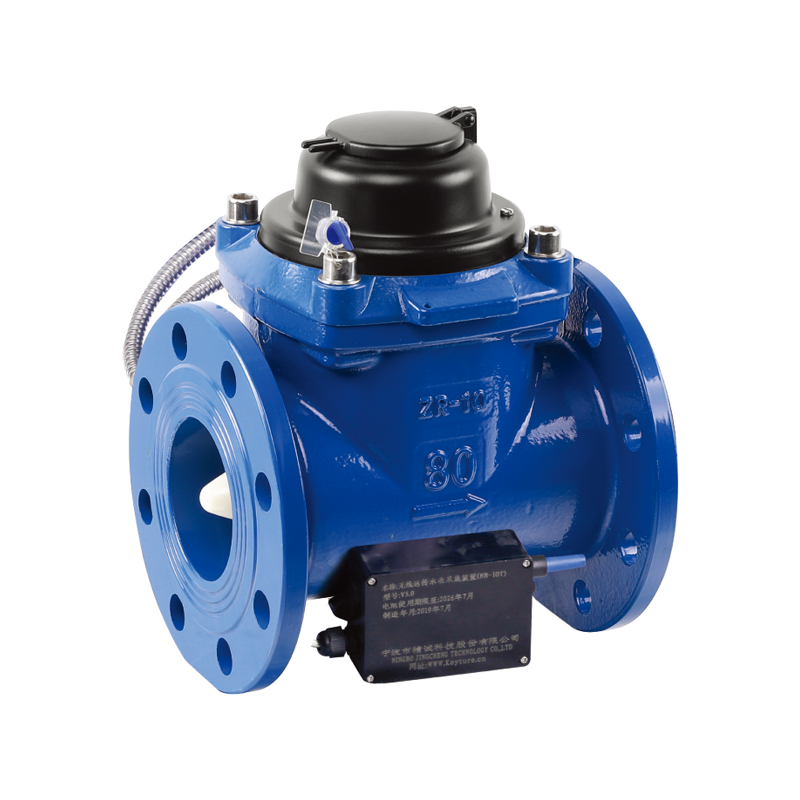

KM06-06

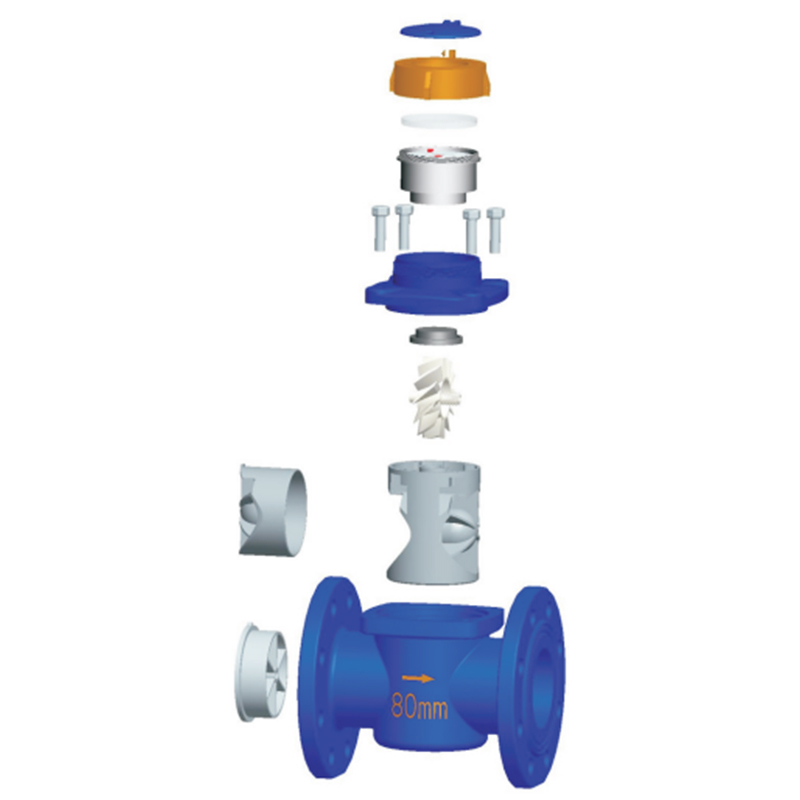

The water inlet/outlet of the water meter need straight pipe section U10, D5, Internal-exchangeable mechanism, easy to remove the mechanism from the body for easy inspection, no need to dismantle the meter from the pipe.
Description
1. Application
Measuring, memorizing and displaying the volume of cold(hot) water passing through the pipeline.
2. Feature
● Large flow capacity and small pressure lose.
● Anti-pollution, Built-in stainless steel strainer can save the installation cost. The measuring mechanism can be removable from the body for checking maintaining and replacing.
● Selected high quality materials for steady and reliable characteristics.
● Vacuum sealed register ensures the dial kept from fog and keep reading clear in long-term service
3. Main Technical Data
Water meter temperature grade: T30,T50,T70,T90
Pressure grade: MAP10
Pressure loss grade: △P63
Upstream disturbance grade: U10
Downstream disturbance grade: D5

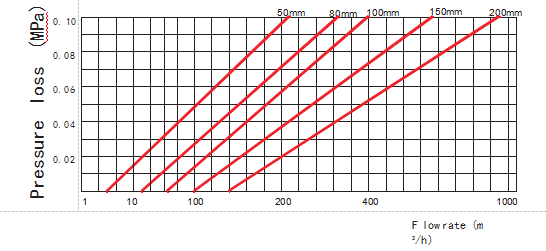

4. Head Loss Curve

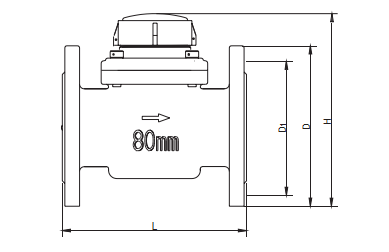

5. Installation Dimension
|
Diameter mm |
L |
D |
D1 |
H |
Connection flange |
Weight |
|
mm |
Dxn |
kg |
||||
|
40 |
200 |
Φ150 |
|
206 |
4*Φ19 |
|
|
50 |
200 |
Φ165 |
Φ125 |
210 |
4*Φ19 |
15 |
|
65 |
200 |
Φ185 |
Φ145 |
218 |
4*Φ19 |
|
|
80 |
225 |
Φ200 |
Φ160 |
280 |
4/8*Φ19 |
17.5 |
|
100 |
250 |
Φ220 |
Φ180 |
290 |
8*Φ19 |
20 |
|
125 |
250 |
Φ250 |
|
310 |
8*Φ19 |
|
|
150 |
300 |
Φ285 |
Φ240 |
320 |
8*Φ23 |
33 |
|
200 |
350 |
Φ340 |
Φ295 |
364 |
8/12*Φ23 |
45 |
|
Datacomms |
Static current |
Report |
Operating frequency |
Transmitted power |
Receive sensitivity |
|
Lora |
20μA |
Hall, reed switch |
470-510MHz |
≤20dBm |
-136+1dBm |
|
NB-lot |
10μA |
Hall, reed switch |
B1,B2,B5,B8,NB-lot |
≤23dBm |
-131+1dBm |
