KM01-14

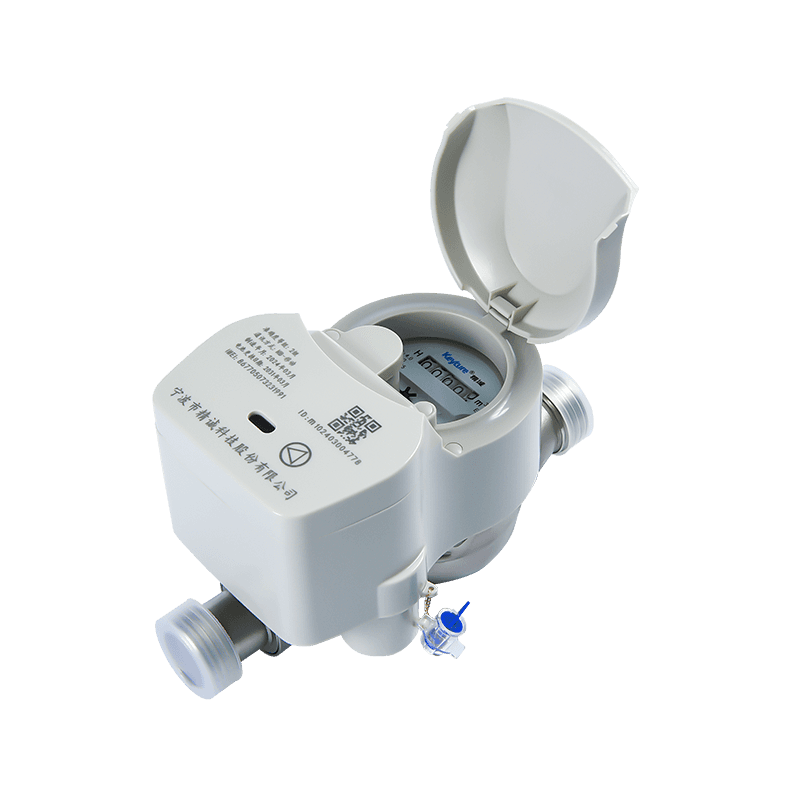

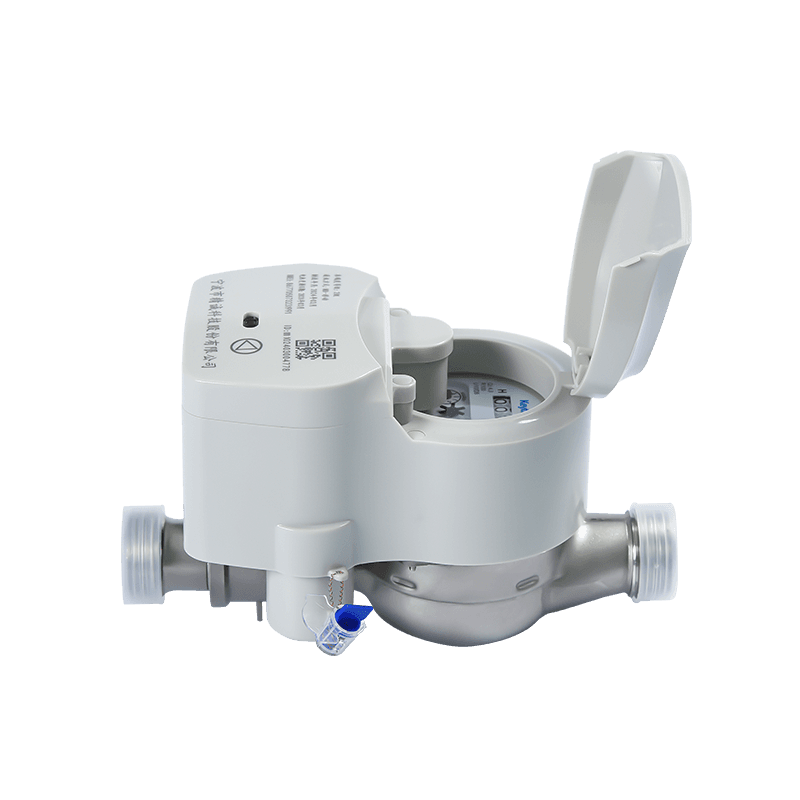

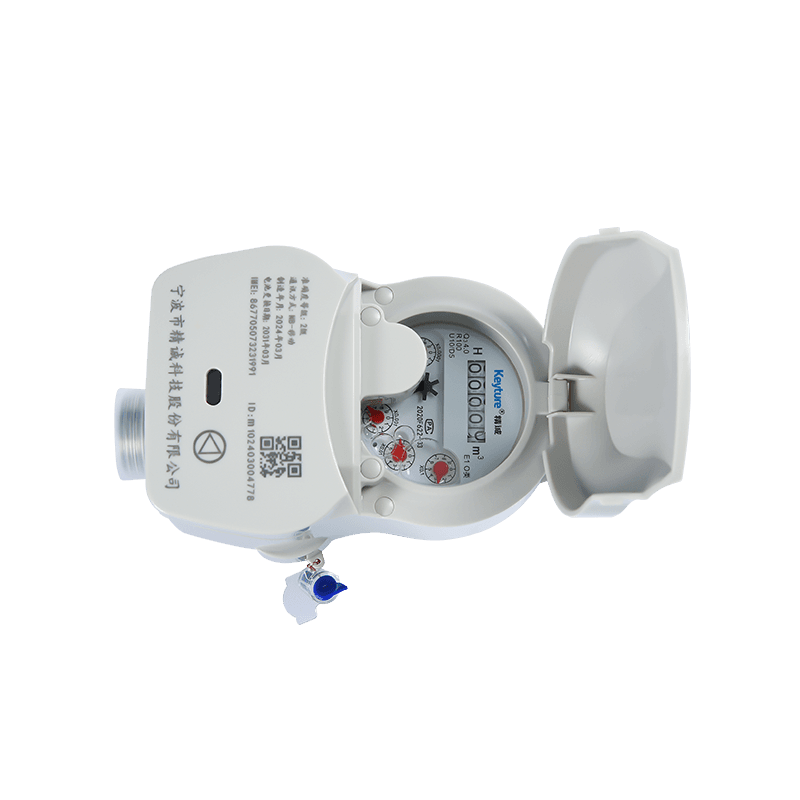

Stainless Wireless Remote Water Meter With Ball Valve

This series of products are wireless remote water meters that separate the mechanic part from the intelligent module completely and upload the water consumption through NB\LORA Internet. Using a low-power microprocessor and low-power processing mechanism to prolong battery life; Using NB wireless centralized copying data, connected to the battery can be used without manual intervention.

PREV: Vertical Plastic Body Waterproof Wireless Remote Water Meter With Ball Valve NEXT:Iron Body Wireless Remote Water Meter With Patented Ceramic Valve

Description

1. Features

Multi-jet vane wheel.
Wet type register, high sensitivity,glycerin-sealed dial ensures long-term clear reading.
Split type, separate sealing structure, easy to replace and maintain, damp-proof, IP68.
Replaceable battery chamber design.
Adopt stable NB\LORA internet signal transmission technology
Collect water consumption according to 1L,10L,100L.
Material, iron, plastic, brass, stainless
Provided with lead seal and dust-proof cover
Climate and EMC class B\O, E1

2. Electronic Parameter

Datacomms	Static current	Report	Operating frequency	Transmitted power	Receive sensitivity
Lora	20μA	Hall\Reed switch	470-510MHz	≤20dBm	-136+1dBm
NB-lot	10μA	Hall\Reed switch	B1,B2,B5,B8,NB-lot	≤23dBm	-131+1dBm

3. Head Loss Curve

4. Accuracy Error Curve

5. Installation Dimension

Item No		LXSGW-15	LXSGW-20
L1	mm	260	295
L	mm	180	190
H	mm	165	165
W	mm	130	130
Connection Thread	D(mm)	G3/4"	G1"
	d(mm)	R1/2	R3/4
	without unions kg	1.6KG	1.8KG
	without unions kg	1.6KG	1.8KG

6. Main Technical Parameter

Model Number	LXSGW-15			LXSGW-20
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃

Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the	0.00005
Indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
