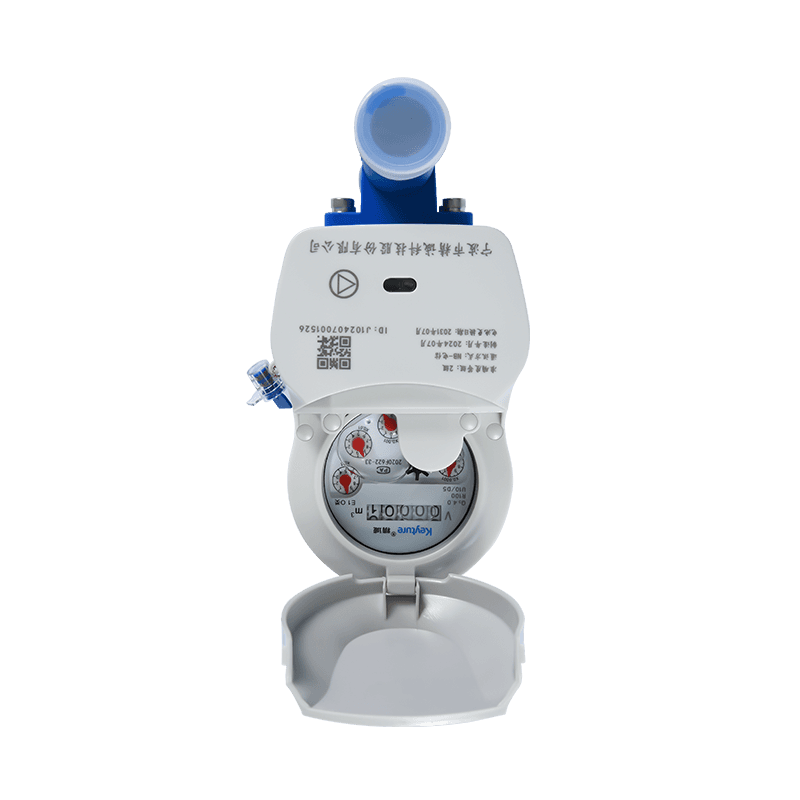

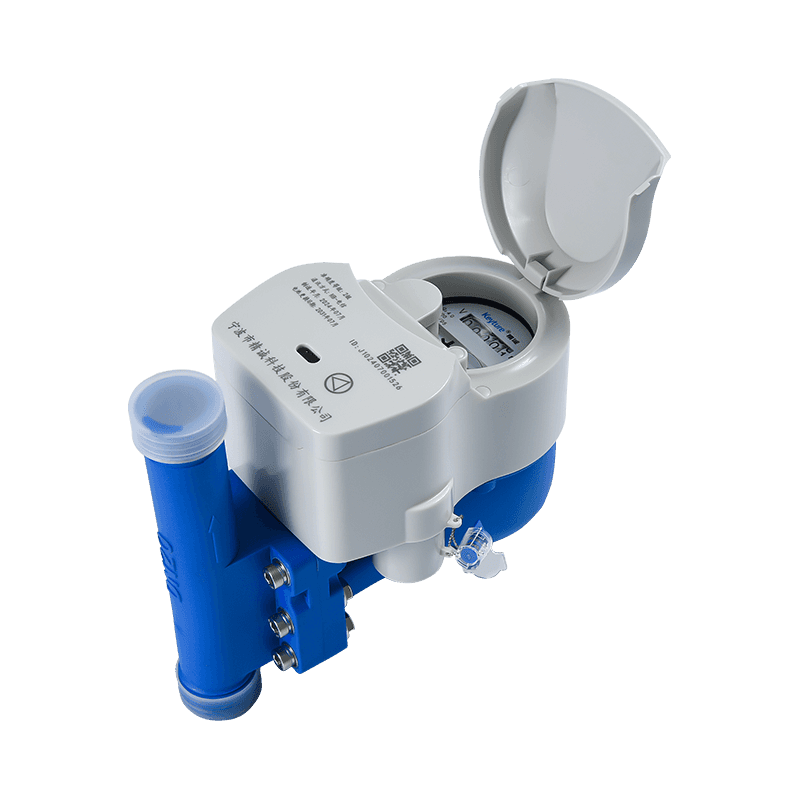

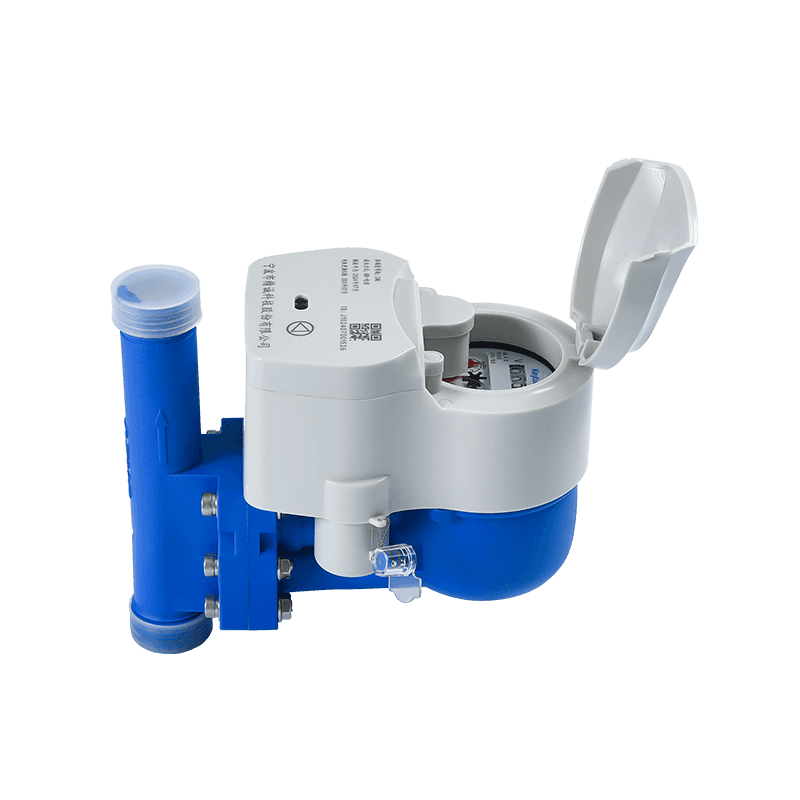

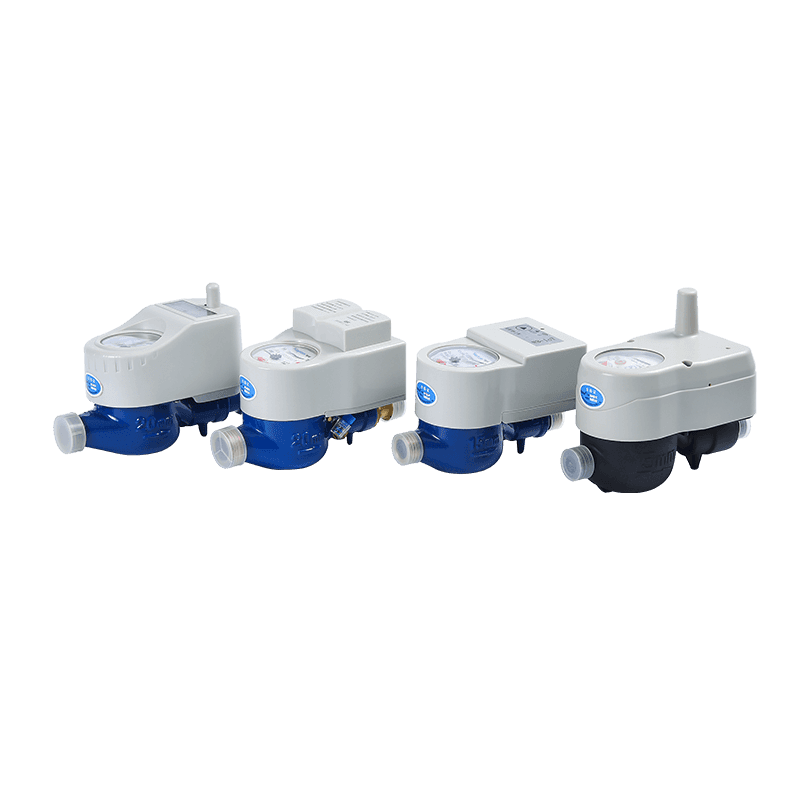

Vertical Plastic Body Waterproof Wireless Remote Water Meter With Ball Valve

Description

1. Features

  • Multi-jet vane wheel.
  • Wet type register, high sensitivity,glycerin-sealed dial ensures long-term clear reading.
  • Split type, separate sealing structure, easy to replace and maintain, damp-proof, IP68.
  • Replaceable battery chamber design.
  • Adopt stable NB\LORA internet signal transmission technology
  • Collect water consumption according to 1L,10L,100L.
  • Material, iron, plastic, brass,stainless
  • Provided with lead seal and dust-proof cover
  • Climate and EMC class B\O, E1

2. Electronic Parameter

Datacomms Static current Report Operating frequency Transmitted power Receive sensitivity
Lora 20μA Hall\Reed switch 470-510MHz ≤20dBm -136+1dBm
NB-lot 10μA Hall\Reed switch B1,B2,B5,B8,NB-lot ≤23dBm -131+1dBm

3. Head Loss Curve



4. Accuracy Error Curve

5. Installation Dimension

Item No LXSGW-15 LXSGW-20
L1 mm 260 270
L mm 185 190
H mm 165 165
W mm 102 102
Connection Thread D(mm) G3/4" G1"
d(mm) R1/2 R3/4
without unions
kg		 1.4KG 1.6KG

6. Main Technical Parameter

Model Number LXSGW-15 LXSGW-20
Nominal diameter (DN)[mm] 15 20 25 32 40
Ratio Q3/Q1 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160
Overload flow rate (Q4) [m³/h] 3.125 3.125 3.125 5 5 5 7.875 7.875 7.875 12.5 12.5 12.5 20 20 20
Permanent flow rate (Q3) [m³/h] 2.5 2.5 2.5 4 4 4 6.3 6.3 6.3 10 10 10 16 16 16
Transitional flow rate (Q2) [m³/h] 0.05 0.04 0.025 0.08 0.064 0.04 0.126 0.1 0.063 0.2 0.16 0.1 0.32 0.256 0.16
Minimum flow rate (Q1) [m³/h] 0.032 0.025 0.015 0.05 0.04 0.025 0.08 0.063 0.039375 0.125 0.1 0.0625 0.2 0.16 0.1
Accuracy class 2
Maximum permissible error for the lower flow rate zone (MPEι) ±5%
Maximum permissible error for the upper flow rate zone (MPEμ) ±2% for water having a temperature ≤30℃
±3% for water having a temperature ＞30℃
Temperature class T30,T50
Water pressure classes MAP 16
Pressure-loss classes △P63
Indicating range[m³] 99 999
Resolution of the 0.00005
Indicating device[m³]
Flow profile sensitivity classes U10 D5
Orientation limitation VERTICAL
