KM02-11

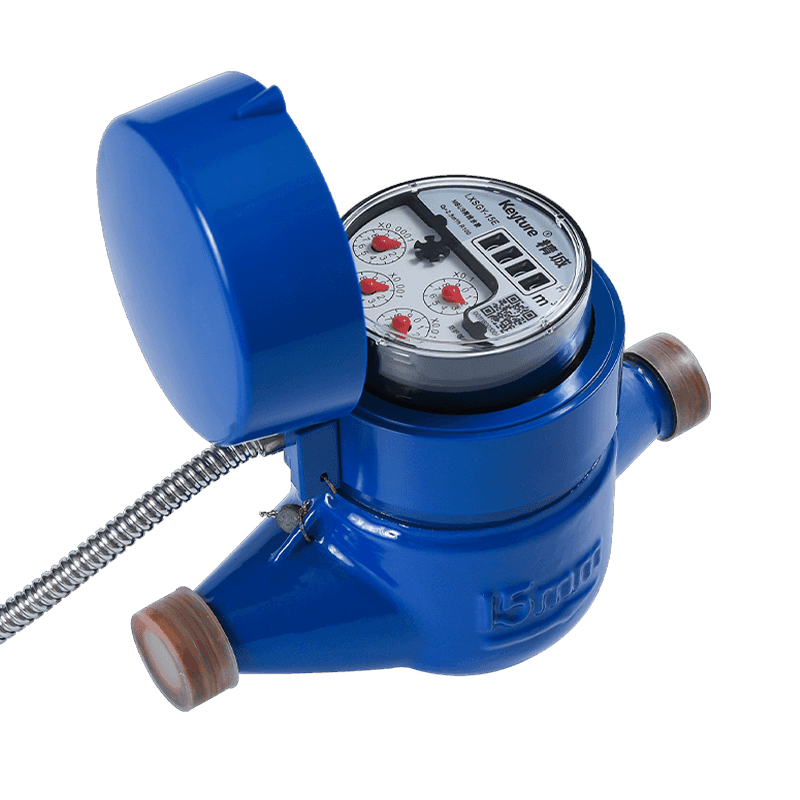

Rs485, Modbus Multi-Jet Wired Remote Iron Body Water Meter

Mbus, GPRS, pulse-based multi-jet water meter

This series of products adopt a photoelectric direct reading module to read the water consumption data and upload it through a special wire. The whole system consists of a water meter, collector, and management center. It has a direct reading function, no built-in battery, long service life, waterproof, antistatic, moisture-proof, antidust, anti-magnetic interference, optional control valve, and a high waterproof level.

This product is mainly used for water metering in residential areas, commercial buildings, office buildings, industries, etc. with remote meter reading requirements and remote power supply capability.

PREV: Wired Remote Plastic Body Liquid Sealed Water Meter NEXT:M-Bus Wired Remote Brass Body Water Meter With Digital Screen,Non Valve Control

Description

1. Features

Mechanical drive with protection dry register
Material: plastics, iron, copper,stainless
Moisture-proof, sun-proof, anti-fluctuation,anti-static,,anti-magnetic interference,anti-freezing, IP68
Non-return valve and strainer optional
Water consumption can be read or recorded real time
Environment: B ,E1
Zero power supply except reading water consumption
Standard:ISO4064:2005 Version(R=80)
ISO4064:2005(R=160)

2. Electronic Technique

Working Voltage	Working Temperature	Working Current	Output
DC9-15V(RS-485)	0~45 ℃	≤9mA	RS-485

3. Head Loss Curve

4. Accuracy Error Curve

5. Installation Dimension

Item No		LXSGY-15	LXSGY-20	LXSGY-25	LXSGY-32	LXSGY-40
L1	mm	258	305	345	354	373
L	mm	165	195	225	230	245
H	mm	110	110	115	115	155
W	mm	95	95	110	110	125
Connection Thread:	D(mm)	G3/4"	G1"	G1 1/4"	G1 1/2"	G2"
	d(mm)	R1/2	R3/4	R1	R1 1/4	R1 1/2
	without unions kg	1KG	1.2KG	1.7KG	2.2KG
	without unions kg	1KG	1.2KG	1.7KG	2.2KG

6. Main Technical Parameter

Model Number	LXSGY-15			LXSGY-20			LXSGY-25			LXSGY-32			LXSGY-40
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1:	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃

Temperature class	T30,T50
Water pressure classes	MAP 10
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
