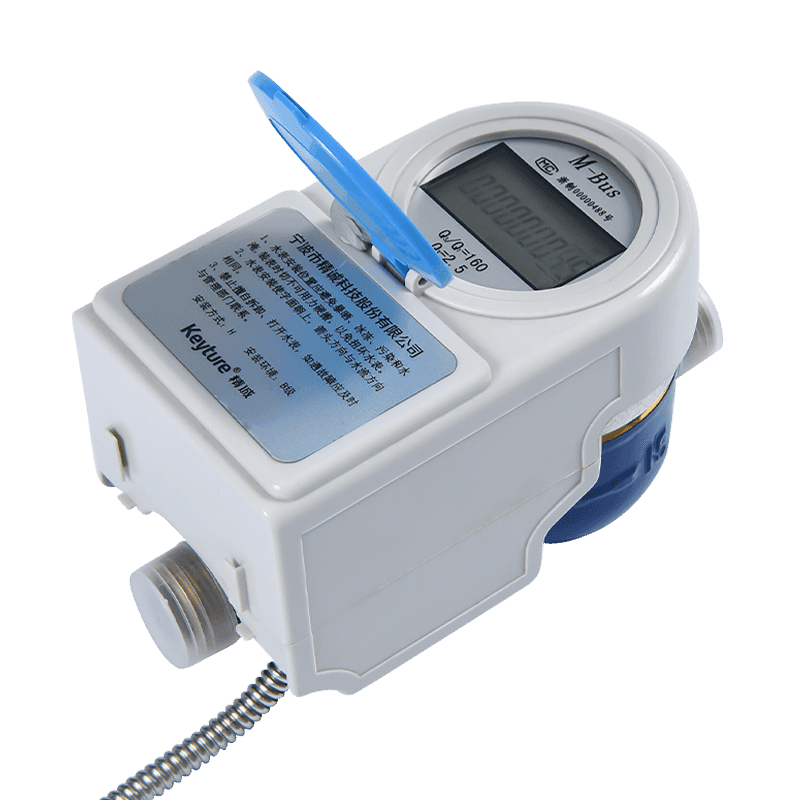

M-Bus Wired Remote Brass Body Water Meter With Digital Screen,Non Valve Control
  • M-Bus Wired Remote Brass Body Water Meter With Digital Screen,Non Valve Control

KM02-12

M-Bus Wired Remote Brass Body Water Meter With Digital Screen,Non Valve Control

This series of products adopt a photoelectric direct reading module to read the water consumption data and upload it through a special wire. The whole system consists of a water meter, collector, and management center. It has a direct reading function, no built-in battery, long service life, waterproof, antistatic, moisture-proof, antidust, anti-magnetic interference, optional control valve, and a high waterproof level.

Contact UsM-Bus Wired Remote Brass Body Water Meter With Digital Screen,Non Valve Control
PREV: Rs485, Modbus Multi-Jet Wired Remote Iron Body Water Meter NEXT:No next article
M-Bus Wired Remote Brass Body Water Meter With Digital Screen,Non Valve Control

Description

1. Features

  • Meet the "electronic remote meter" (CJ / T224-2012) standards;
  • Dry-type register, magnetic drive
  • Material, iron, plastic, brass, stainless
  • Moisture-proof, sun-proof, anti-fluctuation,anti-static, anti-magnetic interference,anti-freezing, IP68
  • Water consumption can be read or recorded real time
  • Environment: B,E1
  • Zero power supply except for reading water consumption
  • Easy to add and maintain water meters and collectors
  • Usually no power, powers by the bus power supply only when meter reading/switching valve, data acquisition, data transmission ,or valve control according to the requirements of the command;
  • The meter has a unique address identifier, according the address can read the corresponding data to ensure data uniqueness, and correctness;
  • Control function, comes with the valve, according to the need to switch to prevent malicious arrears of water charge;
  • Combined with the host computer system, established a remote automatic meter reading management system, really realized meter reading, and monitoring automation.



2. Electronic Technique

Working Voltage Working Temperature Working Current Output
DC9-15V(RS-485)

0~45 ℃

 ≤9mA RS-485

3. Head Loss Curve



4. Accuracy Error Curve

5. Main Technical Parameter

Model Number LXSGY-15 LXSGY-20 LXSGY-25 LXSGY-32 LXSGY-40
Nominal diameter (DN)[mm] 15 20 25 32 40
Ratio Q3/Q1: R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160 R80 R100 R160
Overload flow rate (Q4) [m³/h] 3.125 3.125 3.125 5 5 5 7.875 7.875 7.875 12.5 12.5 12.5 20 20 20
Permanent flow rate (Q3) [m³/h] 2.5 2.5 2.5 4 4 4 6.3 6.3 6.3 10 10 10 16 16 16
Transitional flow rate (Q2) [m³/h] 0.05 0.04 0.025 0.08 0.064 0.04 0.126 0.1 0.063 0.2 0.16 0.1 0.32 0.256 0.16
Minimum flow rate (Q1) [m³/h] 0.032 0.025 0.015 0.05 0.04 0.025 0.08 0.063 0.039375 0.125 0.1 0.0625 0.2 0.16 0.1
Accuracy class 2
Maximum permissible error for the lower flow rate zone (MPEι) ±5%
Maximum permissible error for the upper flow rate zone (MPEμ) ±2% for water having a temperature ≤30℃
±3% for water having a temperature ＞30℃
Temperature class T30,T50
Water pressure classes MAP 10
Pressure-loss classes △P63
Indicating range[m³] 99 999
Resolution of the indicating device[m³] 0.00005
Flow profile sensitivity classes U10 D5
Orientation limitation HORIZONTAL
