KM02-10

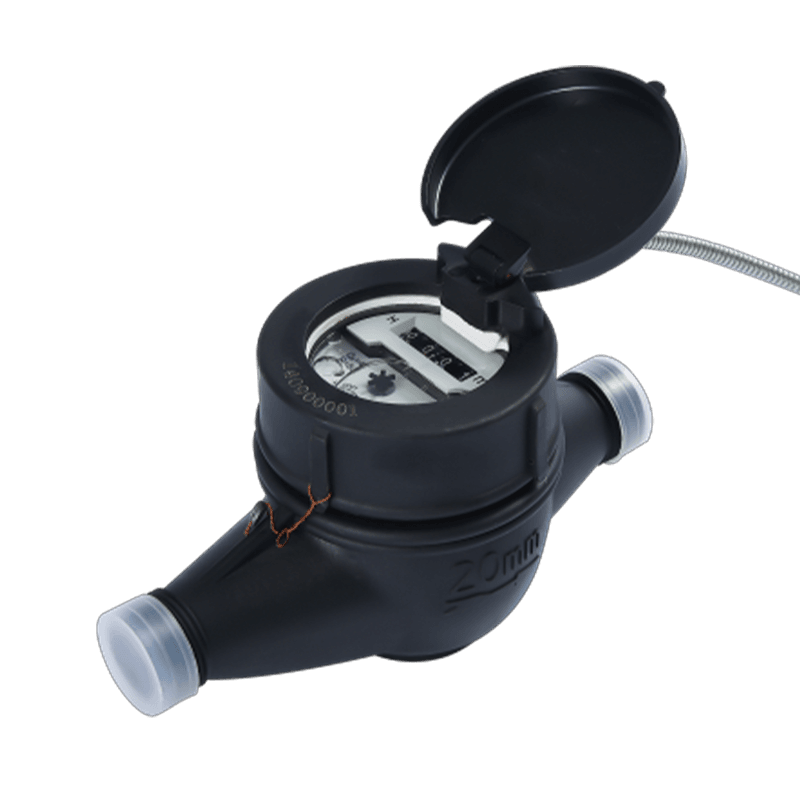

Wired Remote Plastic Body Liquid Sealed Water Meter

This series of products adopt a photoelectric direct reading module to read the water consumption data and upload it through a special wire. The whole system consists of the water meter, collector, and management center. Direct reading function, no built-in battery, long service life, waterproof, anti-static, moisture-proof, anti-dust, anti-magnetic interference, optional control valve, high waterproof level.

PREV: Single-Jet Wired Remote Copper Body Cold Water Meter NEXT:Rs485, Modbus Multi-Jet Wired Remote Iron Body Water Meter

Description

1. Features

Mechanical drive with protection Liquid filled register, long-term clear reading.
Strongest and most reliable plastic body material
Moisture-proof, sun-proof, anti-fluctuation,anti-static, anti-magnetic interference,anti-freezing, IP68
Non-return valve and strainer optional
Water consumption can be read or recorded in time
Environment: B, E1
Zero power supply except for reading water consumption
Standard:ISO4064:2005 Version(R=80)
ISO4064:2005(R=160)

2. Electronic Technique

Working Voltage	Working Temperature	Working Current	Output
DC9-15V(RS-485)	0~45 ℃	≤9mA	RS-485

3. Head Loss Curve

4. Accuracy Error Curve

5. Installation Dimension

Item No		LXSGY-15	LXSGY-20	LXSGY-25	LXSGY-32	LXSGY-40
L1	mm	258	305	345	354	373
L	mm	165	195	225	230	245
H	mm	110	110	115	115	155
W	mm	95	95	110	110	125
Connection Thread:	D(mm)	G3/4"	G1"	G1 1/4"	G1 1/2"	G2"
	d(mm)	R1/2	R3/4	R1	R1 1/4	R1 1/2
	without unions kg	1KG	1.2KG	1.7KG	2.2KG
	without unions kg	1KG	1.2KG	1.7KG	2.2KG

6. Main Technical Parameter

Model Number	LXSGY-15			LXSGY-20			LXSGY-25			LXSGY-32			LXSGY-40
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1:	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃

Temperature class	T30,T50
Water pressure classes	MAP 10
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
