KM01-07

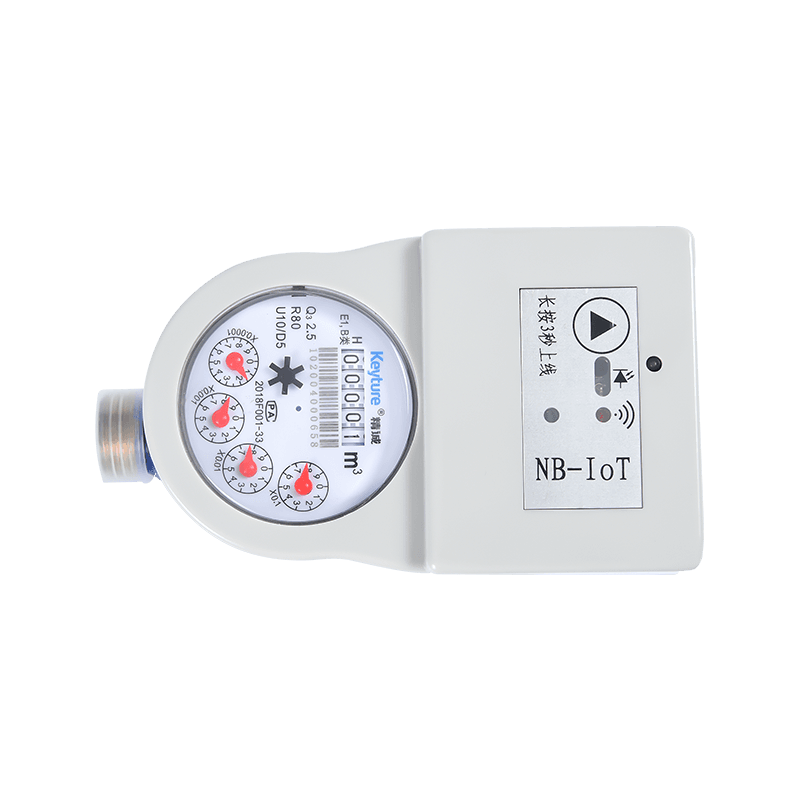

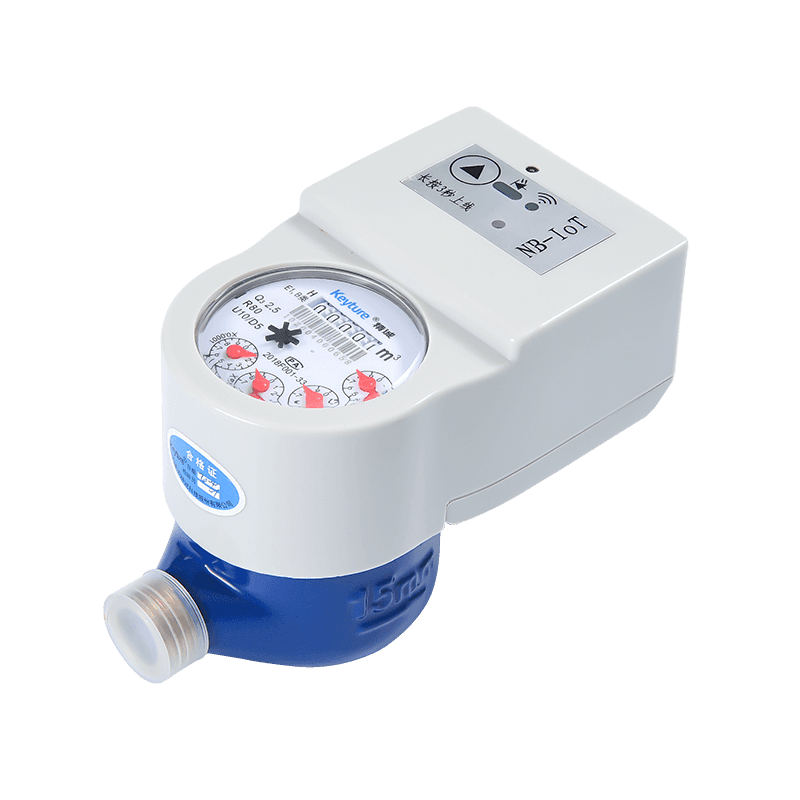

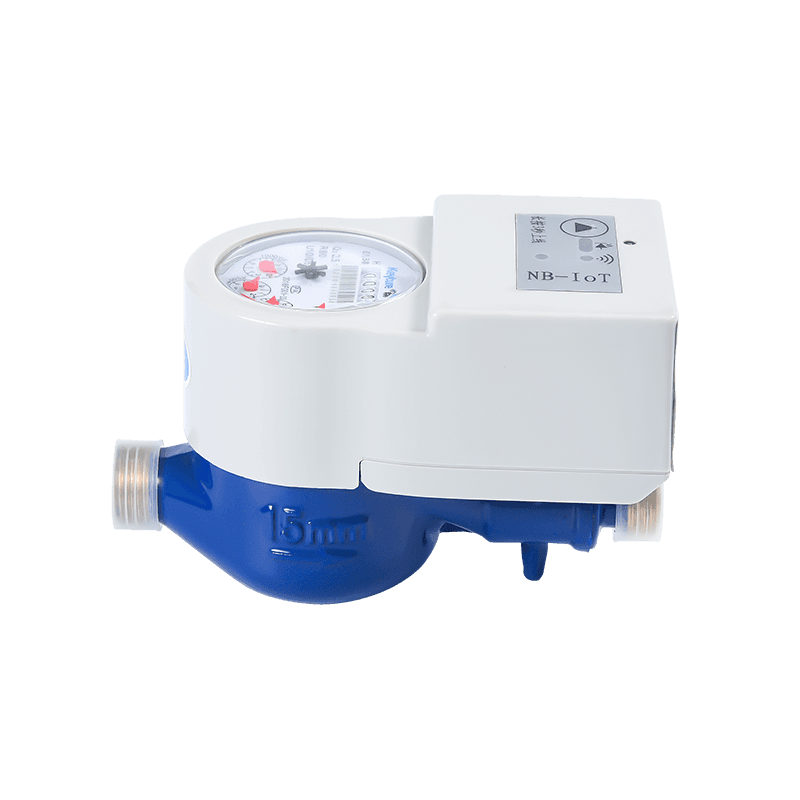

Horizontal Wireless Remote Water Meter With Ball Valve

This series of products are wireless remote water meters that separate the mechanic part from the intelligent module completely and upload the water consumption through NB\LORA Internet. Dry-type design, brass mechanic body, and plastic smart module combination

PREV: Vertical Wireless Remote Water Meter with Ball Valve NEXT:Wireless Remote Transmission Sealed Water Meter With Ball Valve

Description

1. Features

Multi-jet vane wheel.
Dry-type register, high sensitivity,glycerin-sealed dial ensures long-term clear reading.
Split type, separate sealing structure, easy to replace and maintain, damp-proof, IP68.
Replaceable battery chamber design.
Adopt stable NB\lORA internet signal transmission technology
Collect water consumption according to 1L,10L, and 100L.
Material, iron, plastic, brass, stainless
Provided with lead seal and dust-proof cover
Climate and EMC class B\O, E1

2. Electronic Parameter

Datacomms	Static current	Report	Operating frequency	Transmitted power	Receive sensitivity
Lora	20μA	Hall\Reed switch	470-510MHz	≤20dBm	-136+1dBm
NB-lot	10μA	Hall\Reed switch	B1,B2,B5,B8,NB-lot	≤23dBm	-131+1dBm

3. Head Loss Curve

4. Accuracy Error Curve

5. Installation Dimension

Item No		LXSGW-15	LXSGW-20
L1	mm	285	300
L	mm	190	195
H	mm	160	160
W	mm	100	100
Connection Thread	D(mm)	G3/4"	G1"
Connection Thread	without unions kg	1.3KG	1.5KG

6. Main Technical Parameter

Model Number	LXSGW-15			LXSGW-20
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the Indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	Horizontal
