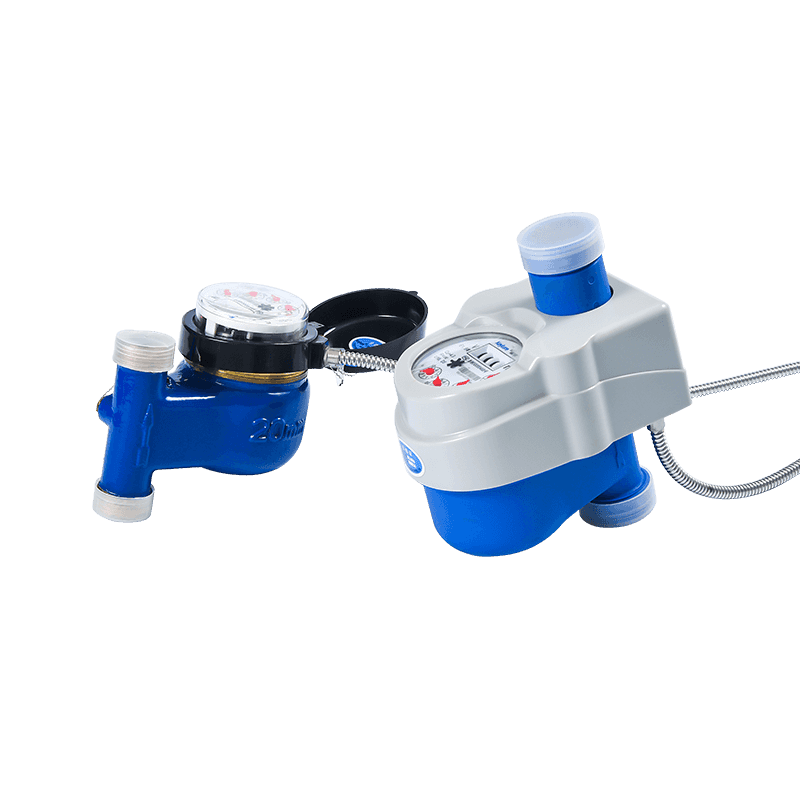

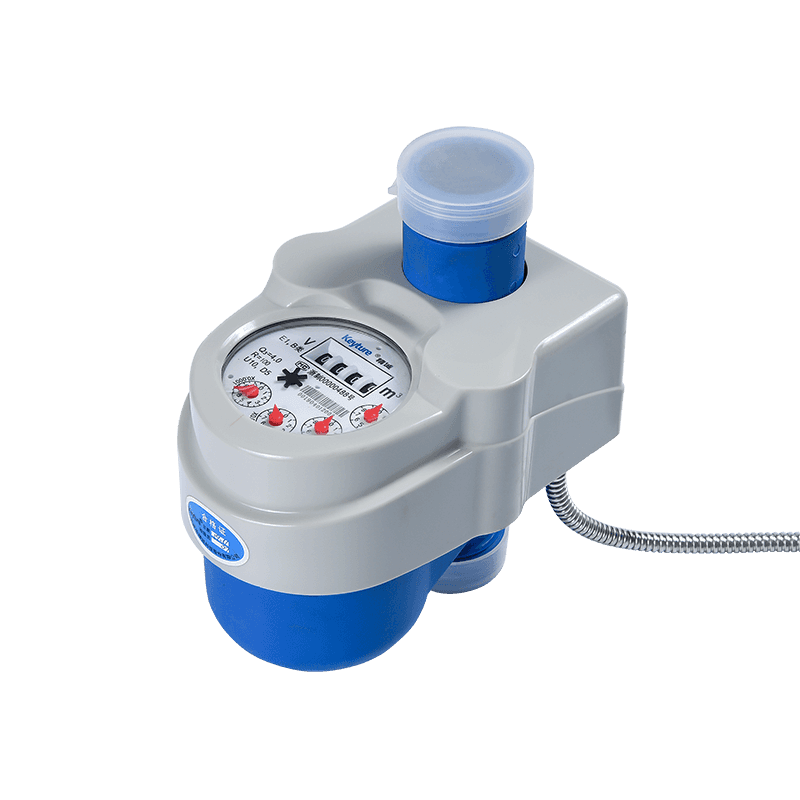

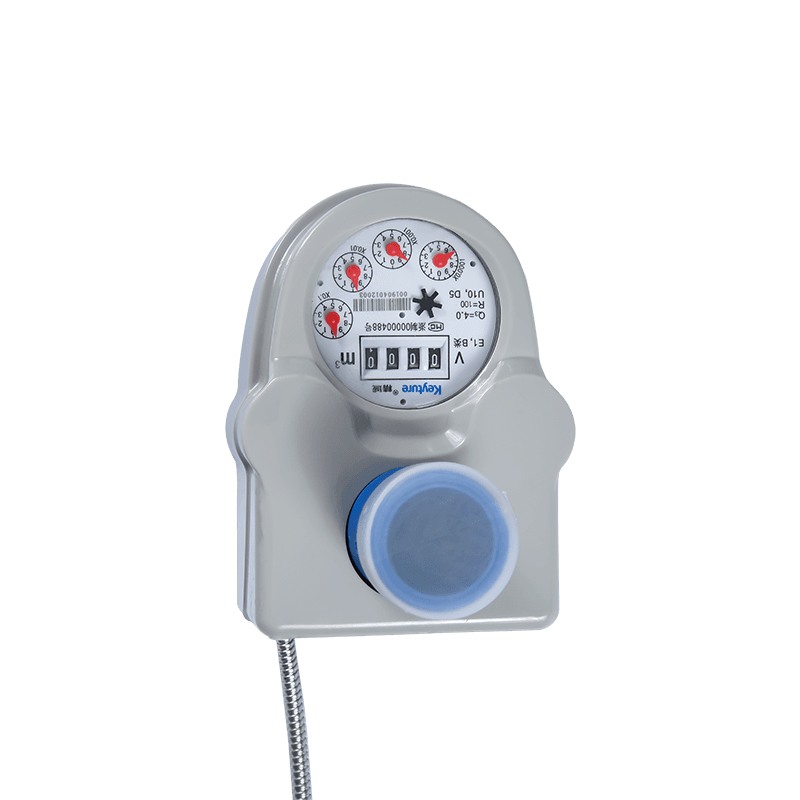

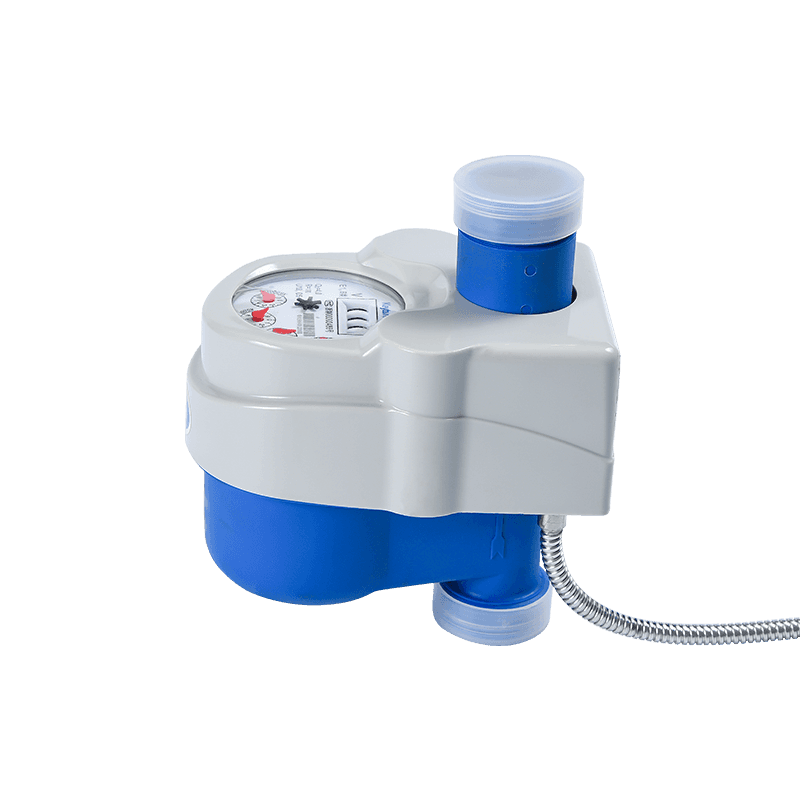

KM02-05

Vertical Dry Type Wired Remote Plastic Body Water Meter with Valve

This series of products adopt photoelectric direct reading module to read the water consumption data and upload it through a special wire. The whole system consists of water meter, collector and management center. Plastic body is lighter and it is easy to install the valve control.

PREV: Dry Type Wired Remote Water Meter with Ball Valve NEXT:Dry Type Wired Remote Water Meter (Pulse)

Description

1. Features

● Multi-jet vane wheel, separate sealing structure, easy to replace and maintain.
● Dry type register, magnetic drive,anti-magnetic interference,anti-freezing, long-term clear reading.
● Material: iron, plastic, brass, stainless.
● Moisture-proof, sun-proof, anti-fluctuation,anti-static, anti-magnetic, IP68.
● Remote valve control is optional.
● Water consumption can be read or recorded real-time.
● Environment B, E1.
● Zero power supply except reading water consumption.
● Easy to add and maintain water meters and collectors.

2. Electronic Technique

Working Voltage	Working Temperature	Working Current	Datacomms
DC9-15V(RS-485)/DC24-36V(M-BUS)	-10~45 ℃	≤9mA	RS-485,M-BUS

3. Head Loss Curve

4. Accuracy Error Curve

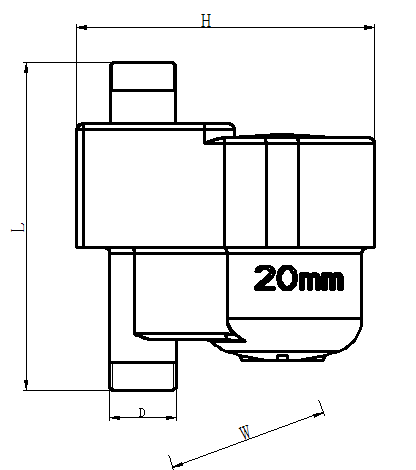

5. Installation Dimension

Item No			LXSGY-20E	LXSGY-25E
L1	mm	260	260	295	354	373
L	mm	165	165	175	230	245
H	mm	118	150	150	115	155
W	mm	90	110	110	110	125
Connection Thread	D(mm)	G3/4"	G1"	G1 1/4"	G1 1/2"	G2"
Connection Thread	d(mm)	R1/2	R3/4	R1	R1 1/4	R1 1/2
Weight	with unions(kg)	1.2	1.5	1.6
Weight	without unions(kg)

6. Main Technical Parameter

Model number				LXSGY-20E			LXSGY-25E
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	VERTICAL
