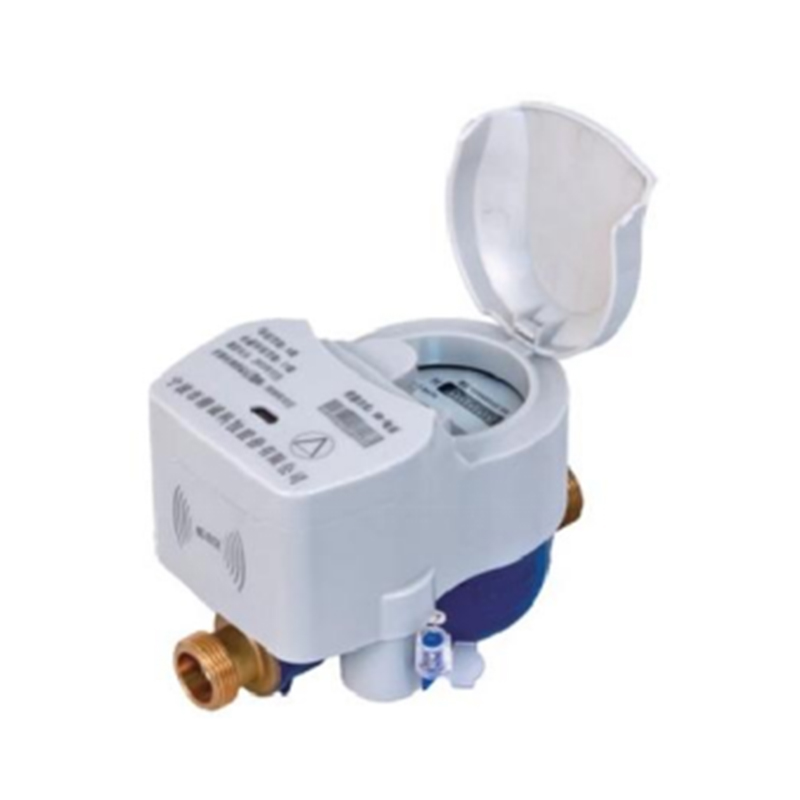

KM03-RF02

Prepaid Valve Control Water Meter

Dry-style multi-jet wireless remote valve control RF card prepaid class b (r80/r100) with intensive data collection.

PREV: Pre-Payment Water Meter NEXT:Radio Frequency Card Prepaid Ball Valve Control Water Meter

Description

1. Application

Jingcheng RF card prepaid water meter is the new measuring instrument employing the microprocessor to realize water collection, processing, display, and reserving.

2. Features

● RF card water meter use prepaid way to achieve the new management mode of"Purchase , then use".

● Show the different level prices of the water, one card can be used for several meters.

● Double reading display: mechanical and electronic reading, unique battery protection.

● 8 functions:Anti-theft; anti-magnetic interference;step water price function; data query;easy to change battery; balance alarm; accurate counting;close valve when arrears.

● Stable performance, wide application, low power consumption, long lifetime.

● Electronic component with good sealing performance, and high protection level.

● Meter Body Adopt environmental protection material, High strength, High toughness.

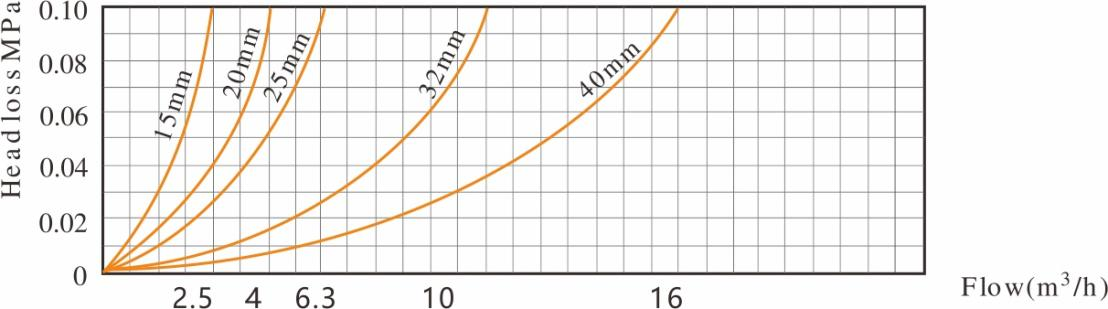

3. Head Loss Curve

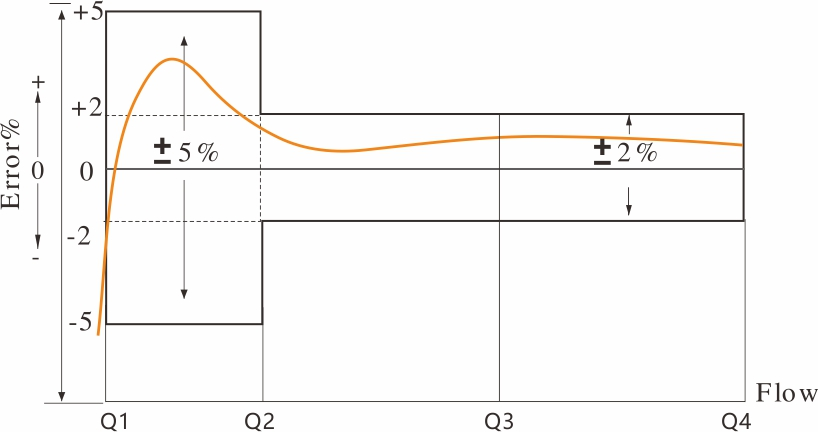

4. Accuracy Error Curve

5. Installation Dimension

Item No	L1 Over Length	L Length	W Width	H Heigh	Weight /pcs(kg)	Measurement(cm)	Connection Thread
Item No	L1 Over Length	L Length	W Width	H Heigh	Weight /pcs(kg)	G.W. /N.W	D	d
LXSGZ-15W	260mm	165mm	90mm	145mm	1.2		G3/4	R1/2
LXSGZ-20W	295mm	190mm	90mm	145mm	1.4		G1	R3/4
LXSGZ-25E	345mm	225mm	90mm	145mm	1.6		G3/4

6. Technical Data

Operating Voltage	Operating frequency	Quiescent electricity	Ambient temperature	Traffic rate	Volume of water per pulse signal
3.6V	470-510MHZ	<25uA	0.1-55 ℃	100Kbps	100L

7. Main Technical Data

Model number	LXSGW-15W			LXSGW-20W
Nominal diameter (DN)[mm]	15			20
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
