KM05-17

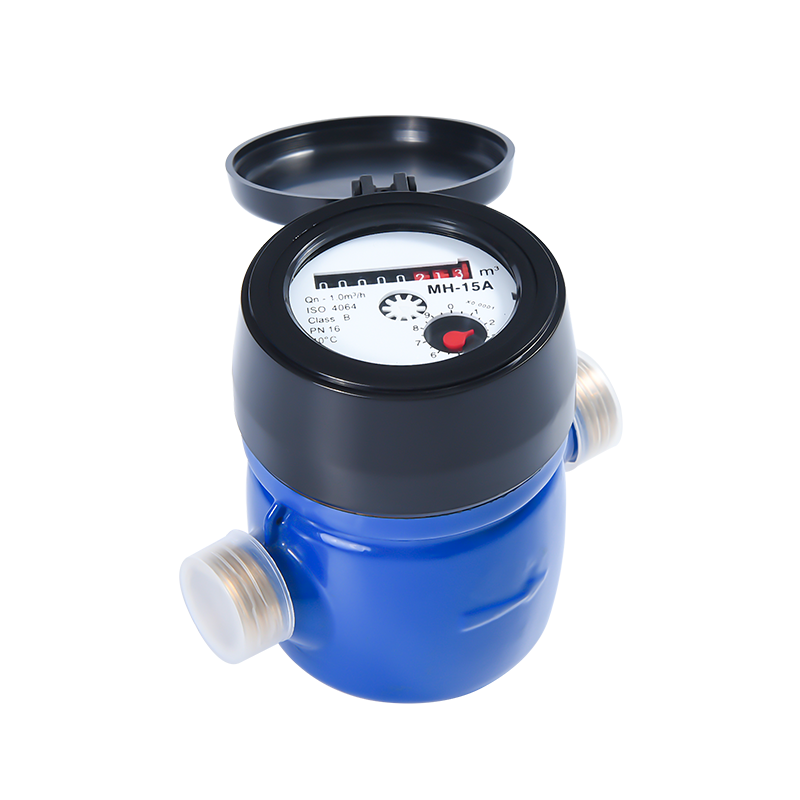

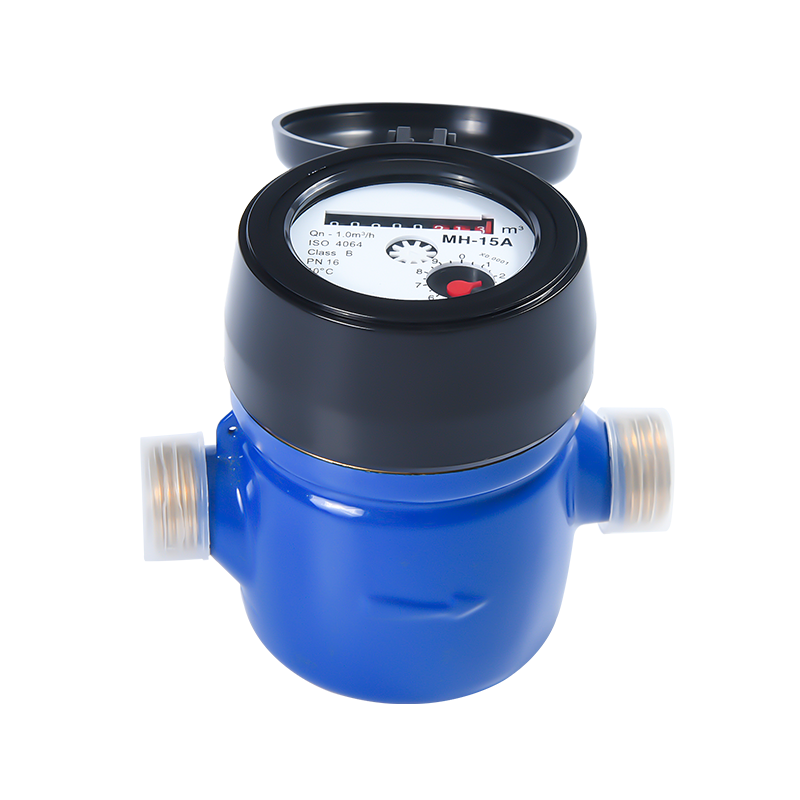

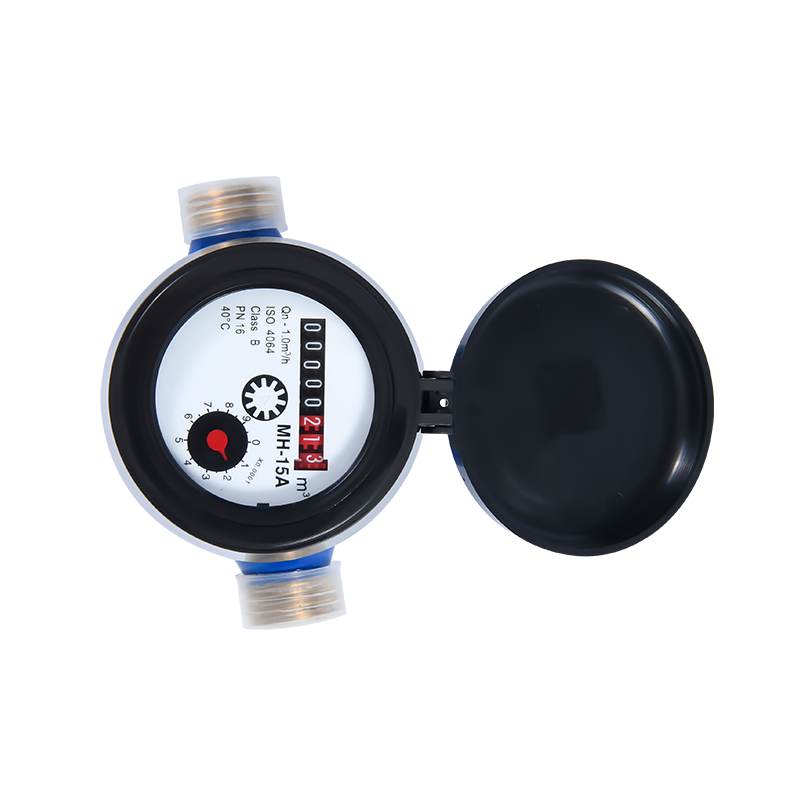

Horizontal Dry Type Rotary Piston Volumetric Brass Body Water Mater

Application: Used for household or residential units to measure, memorize, and display the volume of cold water flowing through the pipeline. Horizontal installation of the dry-type displacement water meter to keep the reading clear for a long time.

PREV: Wet Type Vane Wheel Plastic Body Multi Jet Cold Water Meter NEXT:Domestic Multi Jet Dry Type Cold Water Meter With Aluminum-Sealed Individual Register

Description

1.Features

Adopting volumetric rotary piston principle of measurement, high precision, short joint.
Dry-type register, magnetic drive,anti-magnetic interference,anti-freezing, long-term clear reading
A non-return valve can keep the back flow
Material: Brass, plastic Body for option.
Non-return valves and strainer are available.
Un-affected by grit and particulates
Provided with lead seal and dustproof cover
Confirm to ISO4064
Available for IP68

2. Head Loss Curve

3. Accuracy Error Curve

4. Installation Dimension

Item No		LXSG-15
L	mm	260
L1	mm	165
H	mm	110
W	mm	98
Connection Thread	D(mm)	G3/4"
Connection Thread	d(mm)	R1/2
Weight	without unions kg	1.2KG

5. Main Technical Data

Model Number	LXSG-15
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the Indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
