Description
1. Application

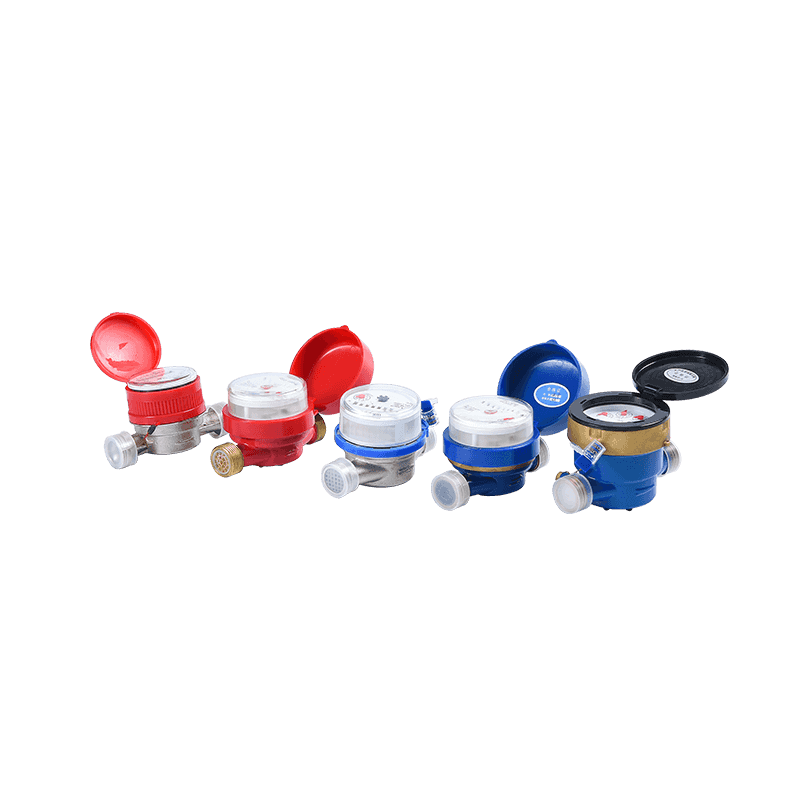

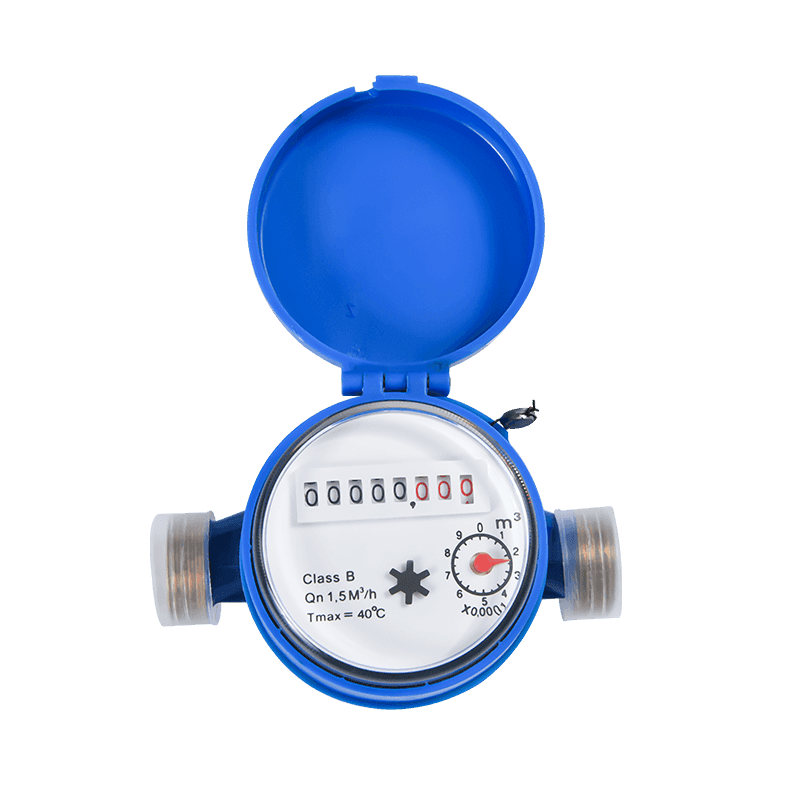

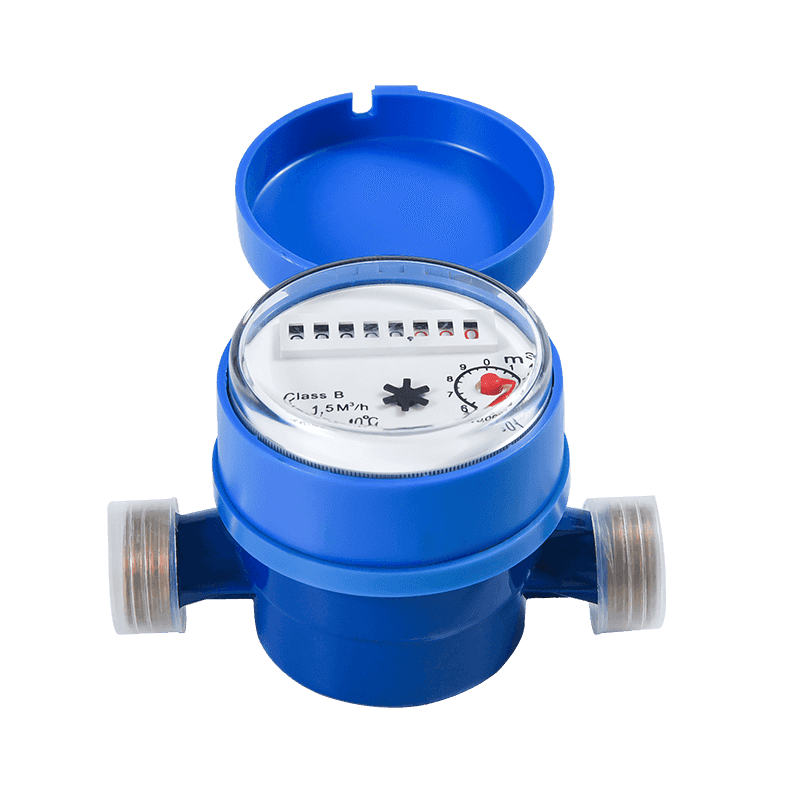

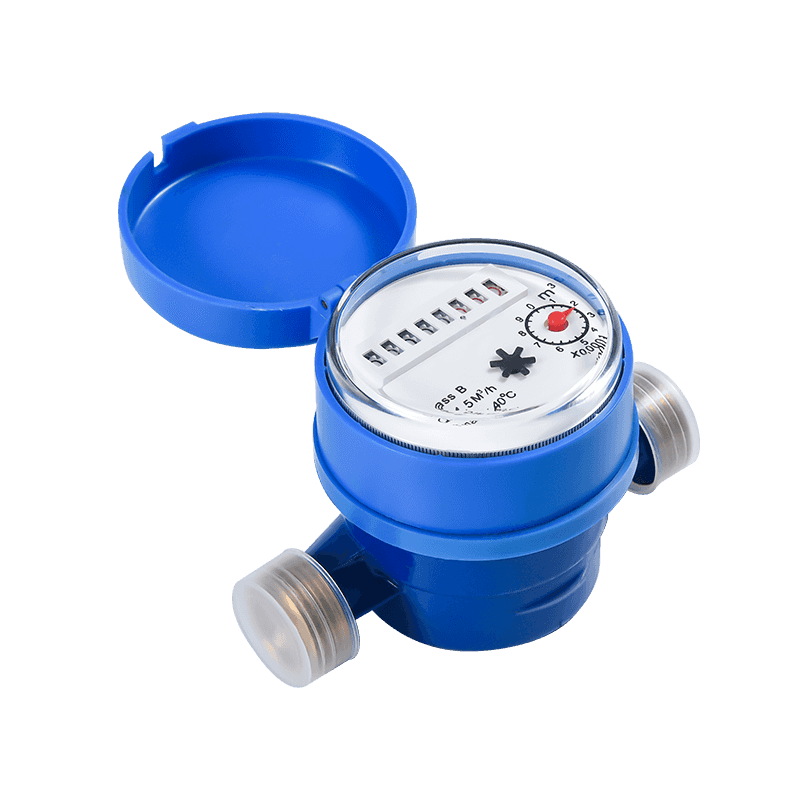

Used for household or residential units to measure, memorize and display the volume of cold water flowing through the pipeline. Small size, light weight, simple structure, high-precision body shell processing and internal plastic material requirements.
2. Features
● Small in size and light in weight.
● Adopt single jet type.
● Dry type register, magnetic drive,anti-magnetic interference,anti-freezing, long-term clear reading, Tamper proof.
● Material: Brass, iron, plastic Body for option.
● Non-return valve is available.
● Un-affected by grit and particulates.
● Provided with lead seal and dustproof cover.
● Confirm to ISO4064.
● Available for IP68.
3. Head Loss Curve

4. Accuracy Error Curve

5. Installation Dimension
|
Item No |
LXSG-13 |
LXSG-20 |
|
|
L |
mm |
110 |
130 |
|
L1 |
mm |
205 |
235 |
|
H |
mm |
75 |
75 |
|
W |
mm |
75 |
75 |
|
Connection Thread |
D(mm) |
G3/4" |
G1" |
|
d(mm) |
R1/2 |
R3/4 |
|
|
Weight |
without unions(kg) |
0.5 |
0.8 |
|
|
|
|
|
6. Main Technical Data
|
Model number |
|
LXSG-20 |
|
|
|
||||||||||
|
Nominal diameter (DN)[mm] |
15 |
20 |
25 |
32 |
40 |
||||||||||
|
Ratio Q3/Q1 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
|
Overload flow rate (Q4) [m³/h] |
3.125 |
3.125 |
3.125 |
5 |
5 |
5 |
7.875 |
7.875 |
7.875 |
12.5 |
12.5 |
12.5 |
20 |
20 |
20 |
|
Permanent flow rate (Q3) [m³/h] |
2.5 |
2.5 |
2.5 |
4 |
4 |
4 |
6.3 |
6.3 |
6.3 |
10 |
10 |
10 |
16 |
16 |
16 |
|
Transitional flow rate (Q2) [m³/h] |
0.05 |
0.04 |
0.025 |
0.08 |
0.064 |
0.04 |
0.126 |
0.1 |
0.063 |
0.2 |
0.16 |
0.1 |
0.32 |
0.256 |
0.16 |
|
Minimum flow rate (Q1) [m³/h] |
0.032 |
0.025 |
0.015 |
0.05 |
0.04 |
0.025 |
0.08 |
0.063 |
0.039375 |
0.125 |
0.1 |
0.0625 |
0.2 |
0.16 |
0.1 |
|
Accuracy class |
2 |
||||||||||||||
|
Maximum permissible error for the lower flow rate zone (MPEι) |
±5% |
||||||||||||||
|
Maximum permissible error for the upper flow rate zone (MPEμ) |
±2% for water having a temperature ≤30℃ |
||||||||||||||
|
Temperature class |
T30,T50 |
||||||||||||||
|
Water pressure classes |
MAP 16 |
||||||||||||||
|
Pressure-loss classes |
△P63 |
||||||||||||||
|
Indicating range[m³] |
99 999 |
||||||||||||||
|
Resolution of the indicating device[m³] |
0.00005 |
||||||||||||||
|
Flow profile sensitivity classes |
U10 D5 |
||||||||||||||
|
Orientation limitation |
HORIZONTAL |
||||||||||||||
