KM05-11

Dry Type Rotary Piston Volumetric Cold Household Water Meter

PREV: Horizontal Dry Type Rotary Piston Volumetric Water Mater NEXT:Single-Jet Brass Body Dry Type Cold Water Meter

Description

1. Application

Used for household or residential units to measure, memorize and display the volume of cold water flowing through the pipeline.

2. Features

● Adopting volumetric rotary piston principle of measurement, high precision.

● Dry type register, magnetic drive,anti-magnetic interference,anti-freezing, long-term clear reading

● Non-return valve can keep back the back flow.

● Material: Brass, plastic Body for option.

● Non-return valve is available.

● Un-affected by grit and particulates.

● Provided with lead seal and dustproof cover.

● Confirm to ISO4064.

● Available for IP68.

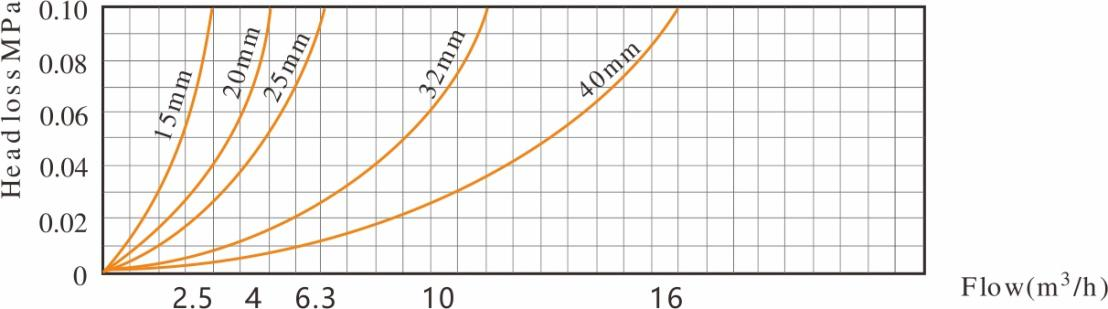

3. Head Loss Curve

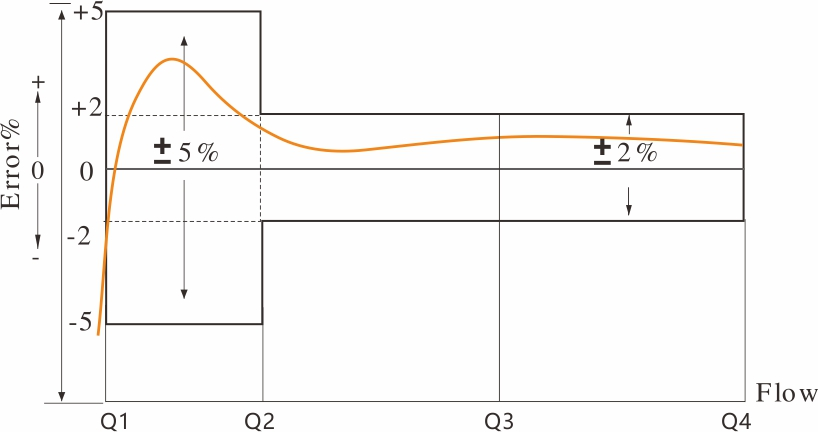

4. Accuracy Error Curve

5. Installation Dimension

Item No		LXSG-15	LXSG-15
L	mm	260	295
L1	mm	165	190
H	mm	110	110
W	mm	98	98
Connection Thread	D(mm)	G3/4"	G1"
Connection Thread	d(mm)	R1/2	R3/4
Weight	without unions(kg)	1.2	1.4
Weight

6. Main Technical Data

Model number	LXSG-15			LXSG-20
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.015	0.05	0.04	0.025	0.08	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
