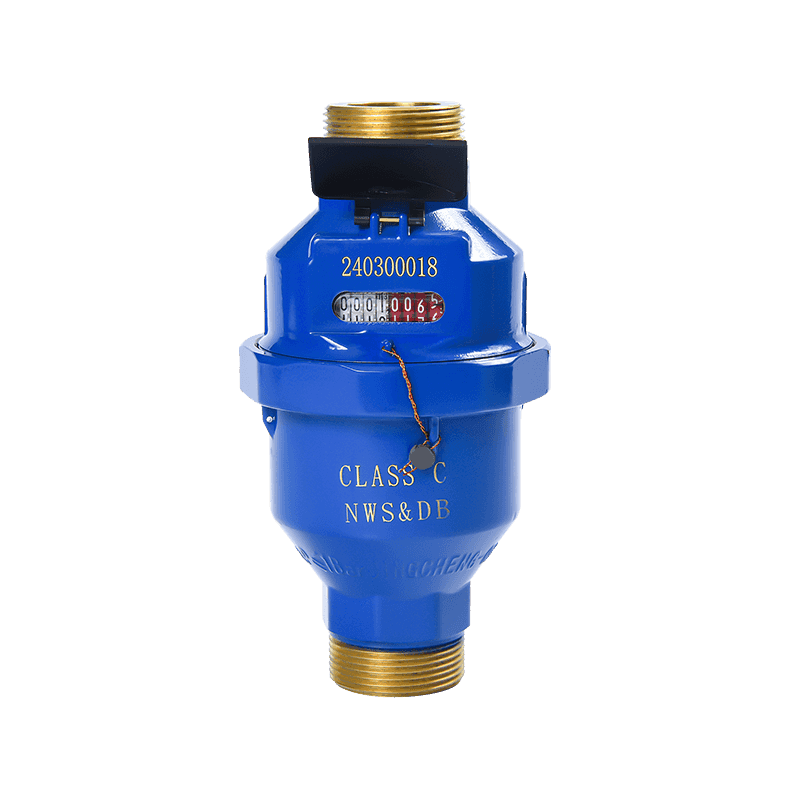

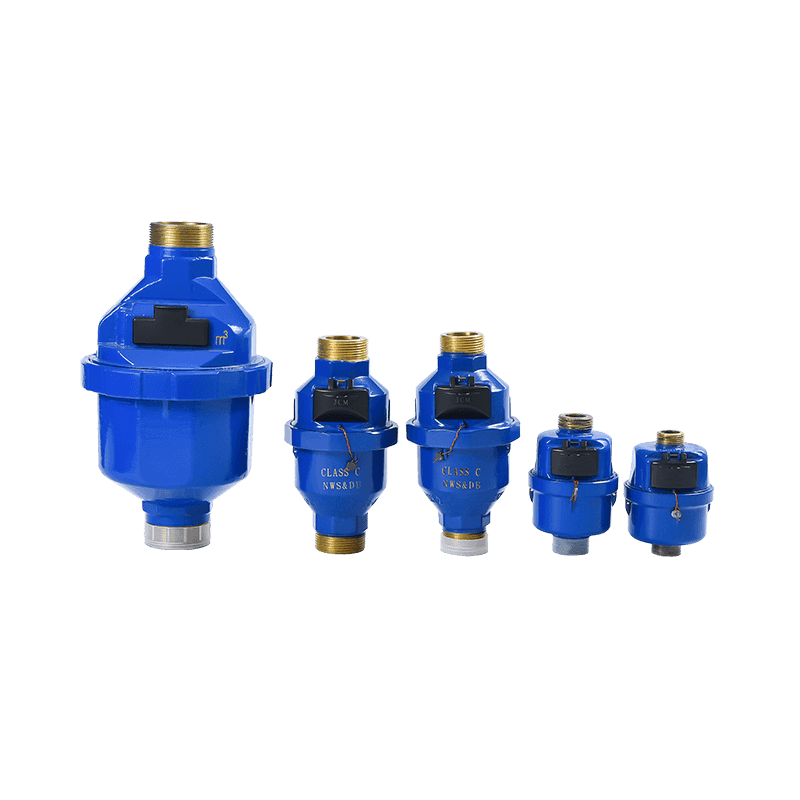

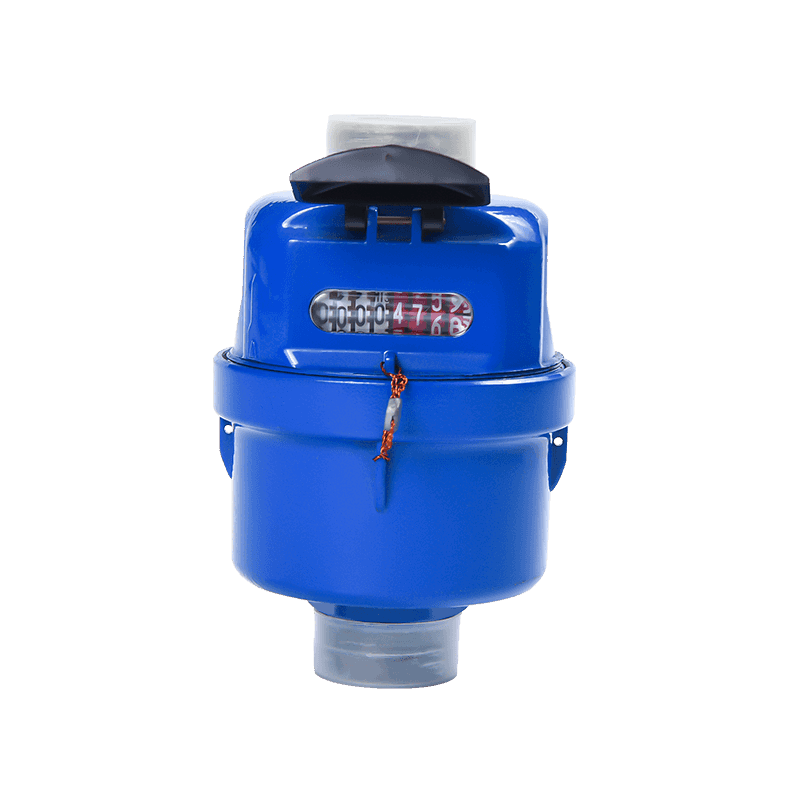

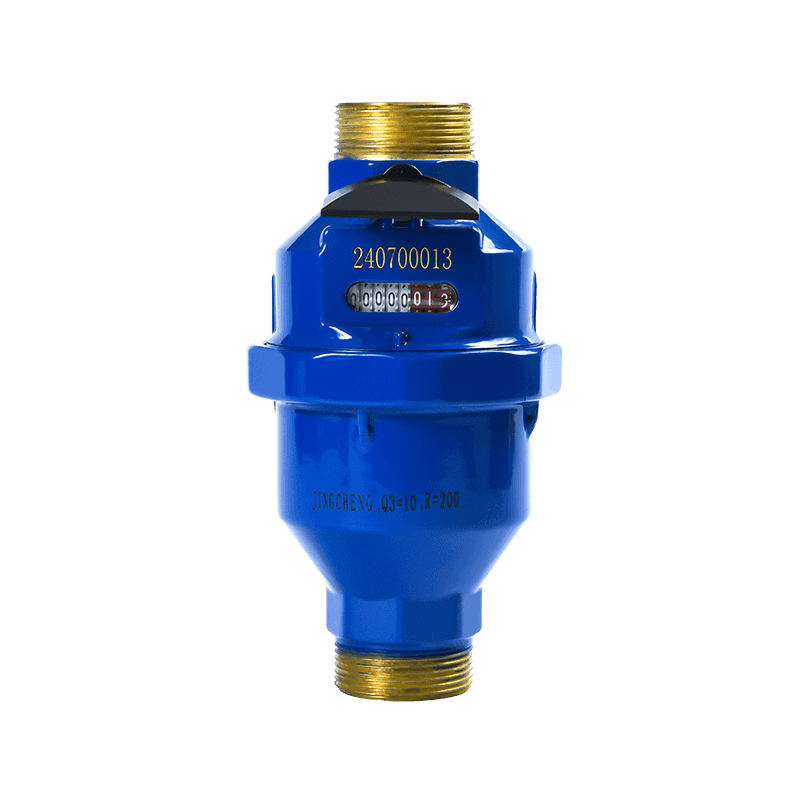

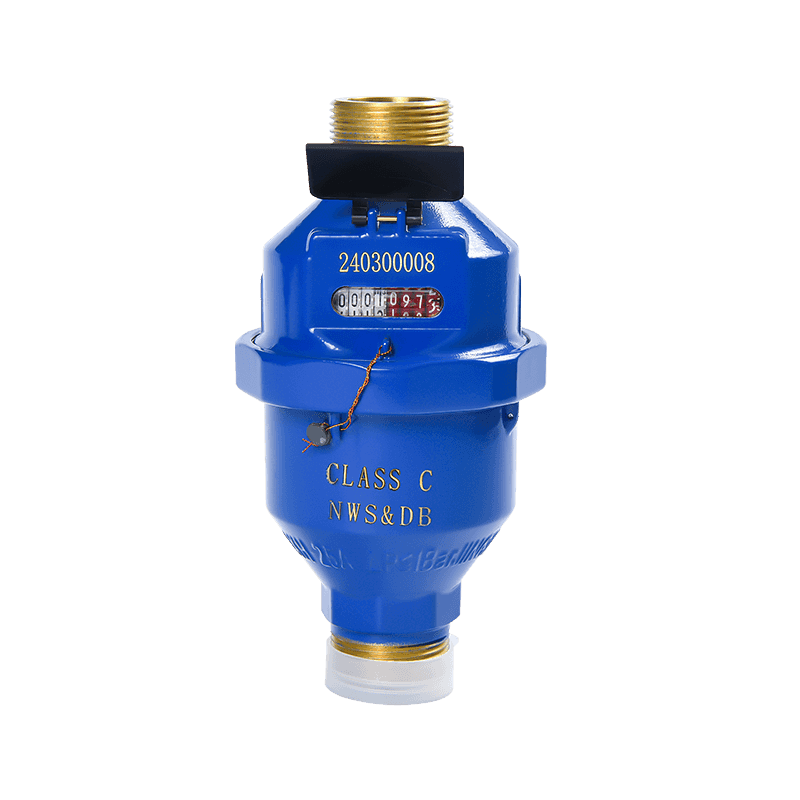

Rotary Piston Volumetric Water Meter

PREV: Dry Type Vane Wheel Plastic Body Multi Jet Cold Water Meter NEXT:Rotary Piston Volumetric Plastic Body Water Meter Domestic

Description

1. Application

Used for household or residential units to measure, memorize and display the volume of cold water flowing through the pipeline. High measurement grade, high sensitivity, high water quality requirements, small flow metering capacity, the more reliable movement material can meet the higher health and strength requirements, installation orientation is not limited.

2. Features

● Adopting volumetric rotary piston principle of measurement, high precision.

● Register is sealed in the capsule with special liquid ensure a clear reading.

● Non-return valve can keep back the backflow.

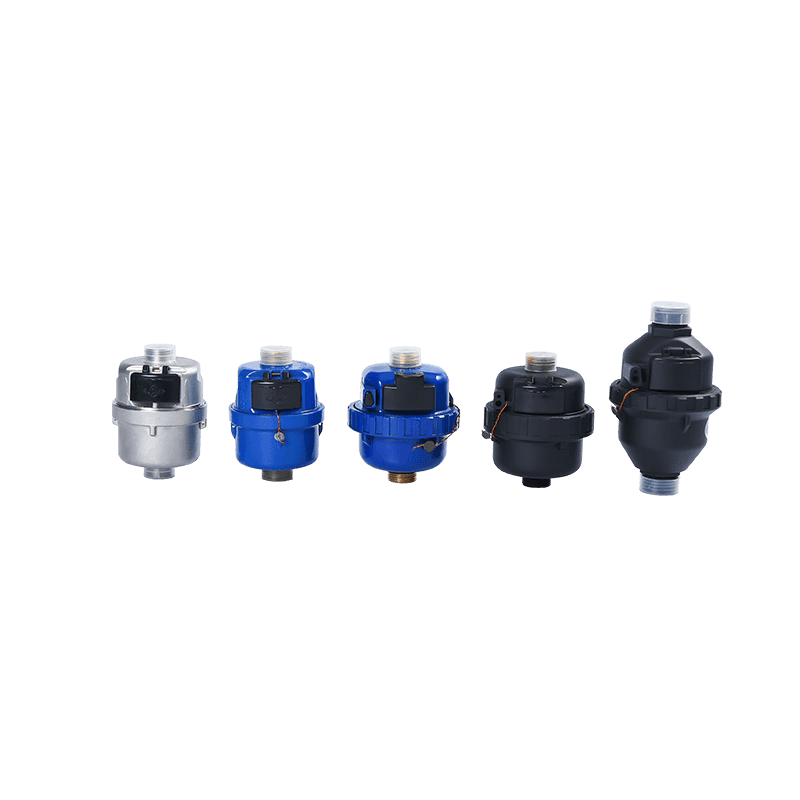

● Material: Brass, plastic Body for option.

● Non-return valve is available.

● Un-affected by grit and particulates.

● Provided with lead seal and dustproof cover.

● Confirm to ISO4064.

● Available for IP68.

3. Head Loss Curve

4. Accuracy Error Curve

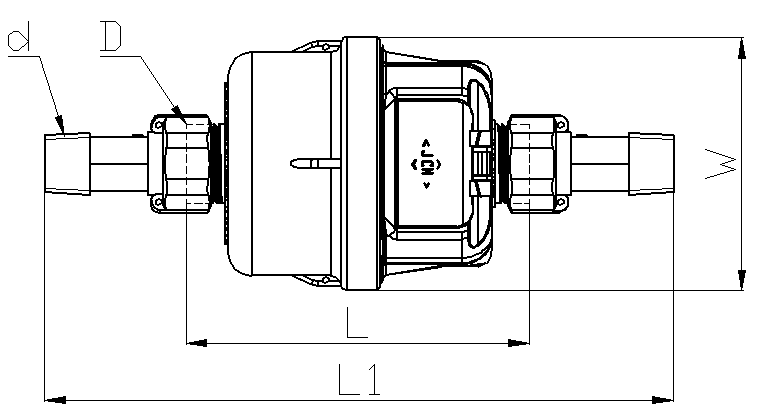

5. Installation Dimension

Item No		LXH-15	LXH-20	LXH-25	LXH-32	LXH-40
L	mm	115	130	200	200
L1	mm	210	235	320	325
H	mm	85	85	105	105
W	mm	85	85	105	105
Connection Thread	D(mm)	G3/4"	G1"	G1 1/4"	G1 1/2"
Connection Thread	d(mm)	R1/2	R3/4	R1	R1 1/2
Weight	without unions(kg)	1	1.3	2.35	2.5
Weight

6. Main Technical Data

Model number	LXH-15			LXH-20			LXH-25			LXH-32			LXH-40
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R100	R160	R200	R100	R160	R200	R100	R160	R200	R100	R160	R200	R100	R160	R200
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	10	10	10	16	16	16
Transitional flow rate (Q2) [m³/h]	0.04	0.024	0.02	0.064	0.04	0.032	0.1	0.063	0.0504	0.16	0.1	0.08	0.256	0.16	0.128
Minimum flow rate (Q1) [m³/h]	0.025	0.015	0.0125	0.04	0.025	0.02	0.02	0.063	0.039375	0.1	0.0625	0.05	0.16	0.1	0.08
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	ANY
