High-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines Custom

Home / Product / Magnetic Water Meter / High-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines

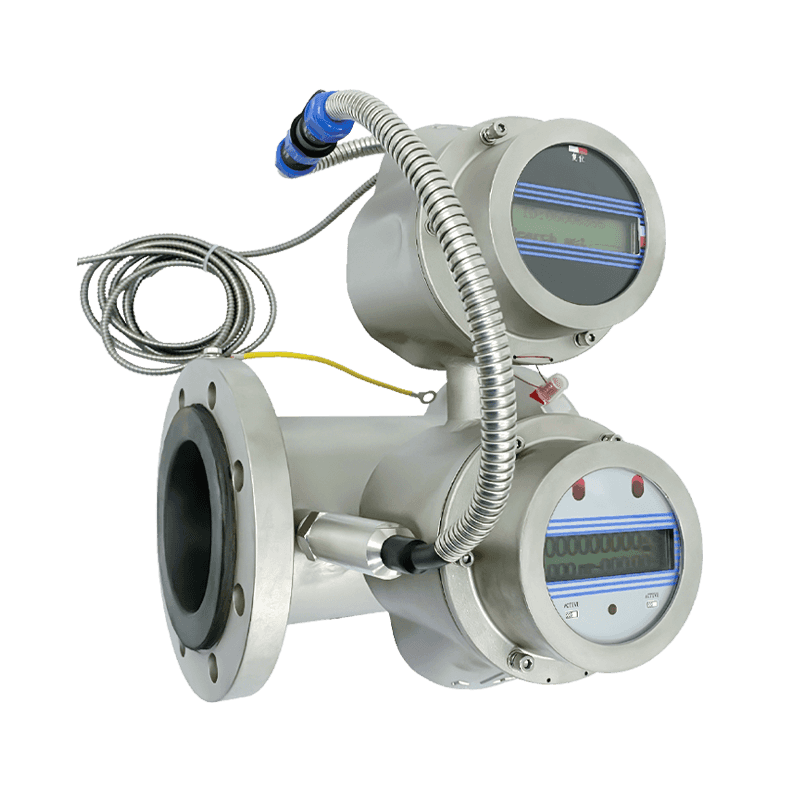

High-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines
  • High-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines

KM08-03

High-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines

Contact UsHigh-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines
PREV: High Accuracy Stainless Electromagnetic Flow Meter NEXT:No next article
High-Quality Remote Electromagnetic Stainless Smart Water Meter To Measure The Volume Flow Of Liquids In Pipelines

Description

1. product features:

  • All stainless steel housing, waterproof, anti-magnetic, anti-corrosion, corrosion resistant zinc base water-based paint
  • Stainless steel body and IP68 protection level.
  • Easy installation and maintenance.
  • Suitable for various harsh outdoor environments, such as water meters.
  • Long-term stable operation
  • Functions include data recording, storage, query, alarm, and traceability.
  • Excellent war resistance, high precision, wide range ration
  • Can measure forward and reverse flow rates.
  • Large flow rate, measurable range ratio, and high-precision measurement.
  • Simple large LCD display
  • Built-in battery drive for long lifespan(6+1 warranty)
  • Self-diagnostic fault prompt
  • Tamper-proof seal
  • Management software: real-time data display, historical data query, data report display and printing, device group management, user multi-level rights group management, map distribution display device location, positioning device dynamic data display



2. Technical data:

Water pressure 0.6MPa-1.6Mpa
Q3/Q1 400/500/1000
DN(MM) DN40-DN500
Measurement Accuracy 1  2
Measuring range 0.001~10m/s
Ambient temperature -40~60℃
Battery 3.6V lithium or 12VDC+3.6V lithium
Construction Standalone/split
Lining material HR rubber  F4:PTFE
Flange and body material Stainless /carbon steel
Communication interface RS485, GSM, GPRS, NB-IoT, Cat. 1
Flow profile sensitivity classes U0D0
Cable length 5 metre
Press loss <=10 KPa
Water temperature T30-T50
Measurement period 1 second/time~15 seconds/time adjustable
Measuring frequency 5 times/1 second
Measurement direction Positive and negative two-way measurement
Input function Pressure, temperature
0peration mode Bluetooth, wireless operation(Infrared hand operator)
Waterproof IP68
Application: for conductive liquid conductivity>20

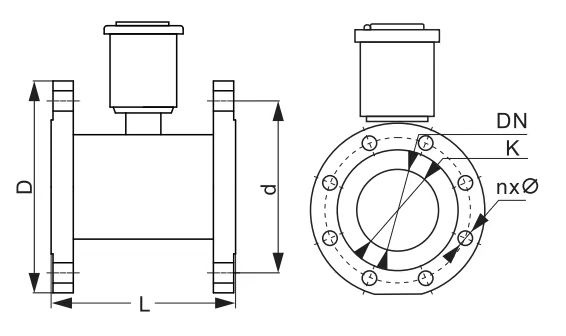

3. Installation Dimension

DN(mm) MPa Measurement(mm)
L D K Diameter screw(MM) Qty for screw
40 1.6/1.0 200 145 110 M16 4
50 1.6/1.0 200 165 125 M16 4
80 1.6/1.0 200/235 200 160 M16 8
100 1.6/1.0 250 215 180 M16 8
150 1.6/1.0 300 280 240 M20 8
200 1.6/1.0 350 335 295 M20 12
250 1.6/1.0 400 390 350 M20 12
300 1.6/1.0 500 440 400 M20 16
350 1.6/1.0 500 500 460 M20 16
400 1.6/1.0 600 565 510 M22 20
450 1.6/1.0 600 615 560 M22 20
500 1.6/1.0 600 670 620 M22 20

4.Main technical data(standard:GB/T778-2018)

R=500 grade1 R=1000  grade2
DN (cm) Q3(M3/H) Q2(M3/H) Q1(M3/H) Q2(M3/H) Q1(M3/H)
40 25 0.08 0.05 0.04 0.025
50 40 0.128 0.08 0.064 0.04
65 63 0.2 0.125 0.101 0.063
80 100 0.32 0.2 0.16 0.1
100 160 0.512 0.32 0.256 0.16
125 250 0.8 0.5 0.4 0.25
150 400 1.28 0.8 0.64 0.4
200 630 2.015 1.26 1.008 0.63
250 1000 3.2 2 1.6 1
300 1600 5.12 3.2 2.56 1.6
