KM01-20

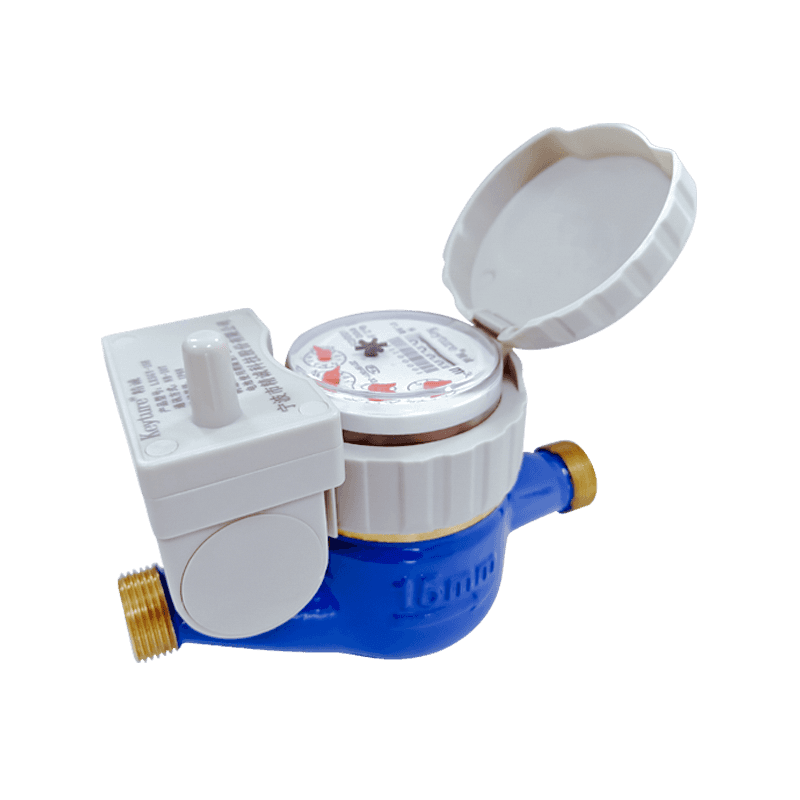

This series of products are wireless remote water meters that the mechanic part from an intelligent module completely and upload the water consumption through LORA Internet.LoRa water meters leverage LoRa technology, a wireless communication protocol known for its long-range capabilities, low power consumption, and efficient data transmission. These meters are designed to remotely measure water consumption in residential, commercial, and industrial settings, providing accurate and real-time data insights to utility providers and consumers alike.
Description
1. Features
2 . Electronic Parameter
Datacomms | Static current | Report | Operating frequency | Transmitted power | Receive sensitivity |
Lora | 20μA | Hall\Reed switch | 470-510MHz | ≤20dBm | -136+1dBm |
NB-lot | 10μA | Hall\Reed switch | B1,B2,B5,B8,NB-lot | ≤23dBm | -131+1dBm |
3. Head Loss Curve

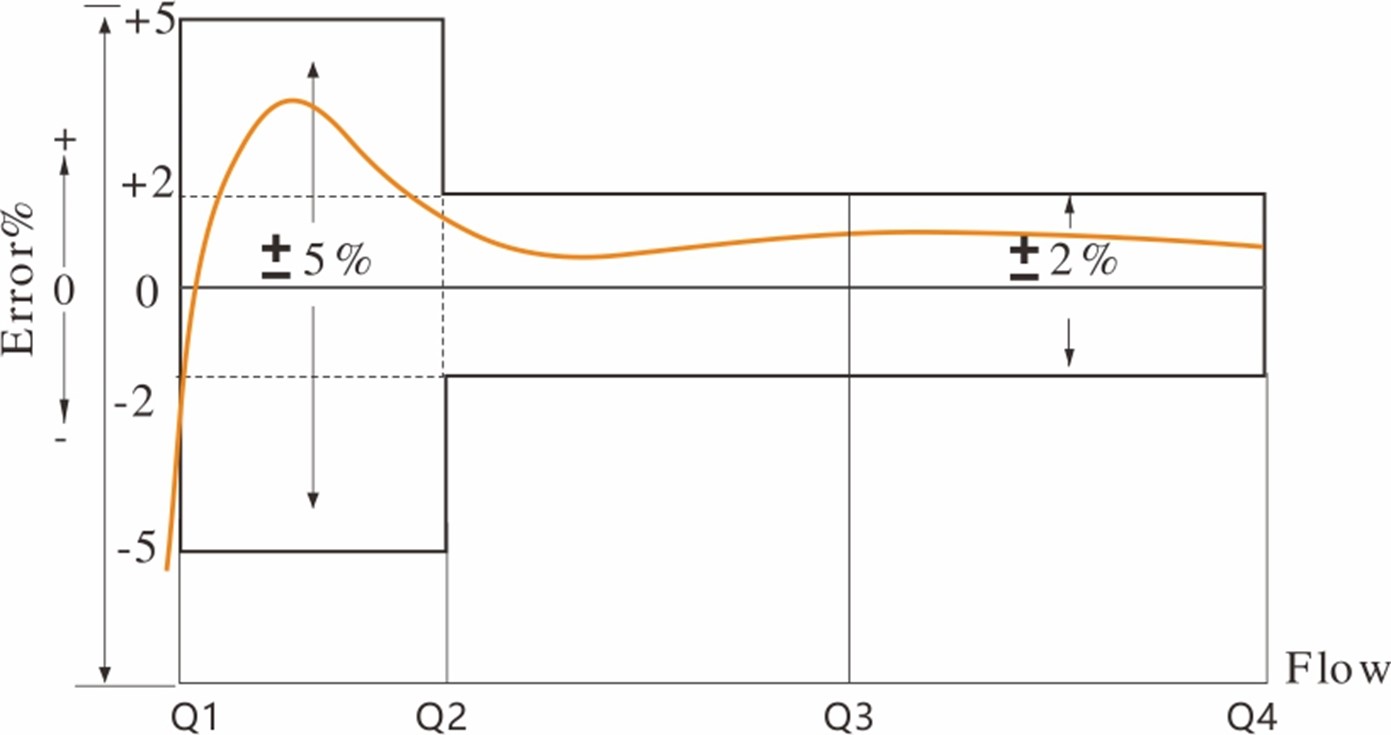

4. Accuracy Error Curve

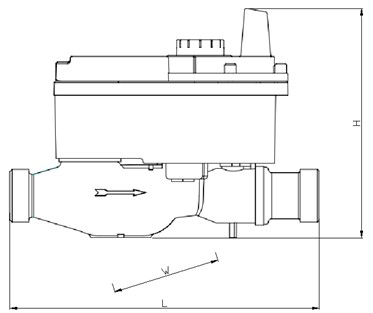

5. Installation Dimension
Item No |
LXSGW-15 |
|
L1 |
mm |
260 |
L |
mm |
185 |
H |
mm |
165 |
W |
mm |
102 |
Connection Thread: |
D(mm) |
G3/4" |
d(mm) |
R1/2 |
|
Weight |
with unions |
|
without unions |
1.4KG |
6. Main Technical Parameter
Model Number |
LXSGW-15 |
|
|
|
|
||||||||||
Nominal diameter (DN)[mm]: |
15 |
20 |
25 |
32 |
40 |
||||||||||
Ratio Q3/Q1: |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
Overload flow rate (Q4) [m³/h] |
3.125 |
3.125 |
3.125 |
5 |
5 |
5 |
7.875 |
7.875 |
7.875 |
12.5 |
12.5 |
12.5 |
20 |
20 |
20 |
Permanent flow rate (Q3) [m³/h] |
2.5 |
2.5 |
2.5 |
4 |
4 |
4 |
6.3 |
6.3 |
6.3 |
10 |
10 |
10 |
16 |
16 |
16 |
Transitional flow rate (Q2) [m³/h] |
0.05 |
0.04 |
0.025 |
0.08 |
0.064 |
0.04 |
0.126 |
0.1 |
0.063 |
0.2 |
0.16 |
0.1 |
0.32 |
0.256 |
0.16 |
Minimum flow rate (Q1) [m³/h] |
0.032 |
0.025 |
0.015 |
0.05 |
0.04 |
0.025 |
0.08 |
0.063 |
0.039375 |
0.125 |
0.1 |
0.0625 |
0.2 |
0.16 |
0.1 |
Accuracy class: |
2 |
||||||||||||||
Maximum permissible error for the |
±5% |
||||||||||||||
Maximum permissible error for |
±2% for water having a temperature ≤30℃ |
||||||||||||||
Temperature class: |
T30,T50 |
||||||||||||||
Water pressure classes: |
MAP 16 |
||||||||||||||
Pressure-loss classes: |
△P63 |
||||||||||||||
Indicating range[m3]: |
99 999 |
||||||||||||||
Resolution of the |
0.00005 |
||||||||||||||
Flow profile sensitivity classes: |
U10 D5 |
||||||||||||||
Orientation limitation: |
HORIZONTAL |
