KM01-02

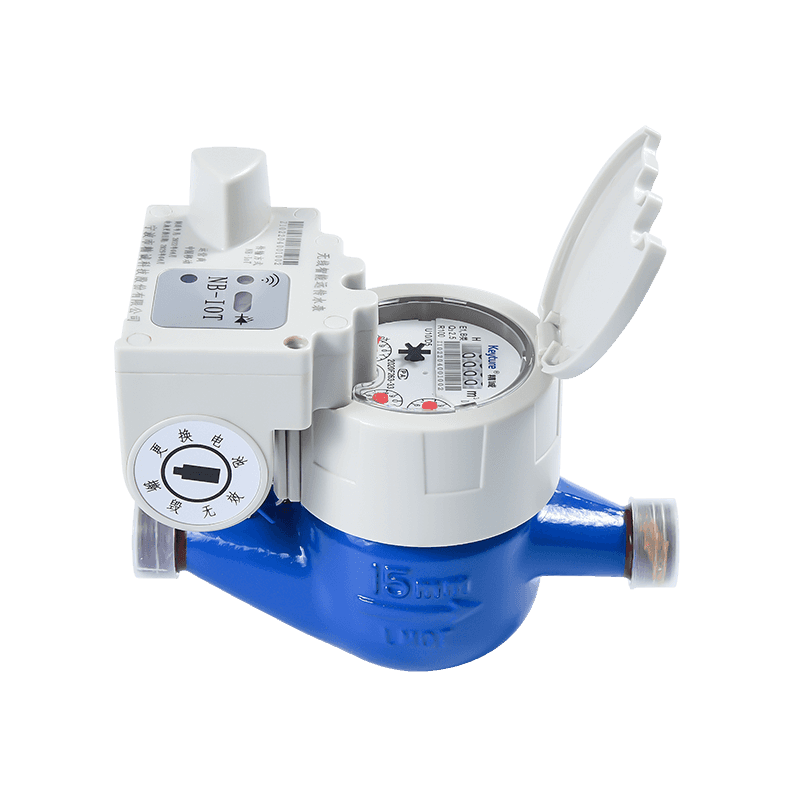

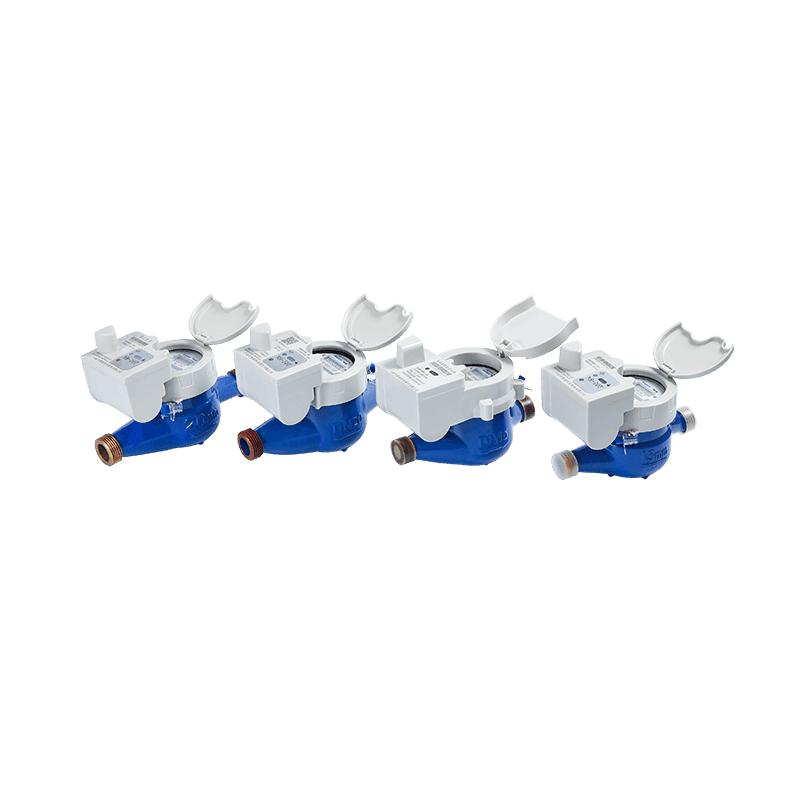

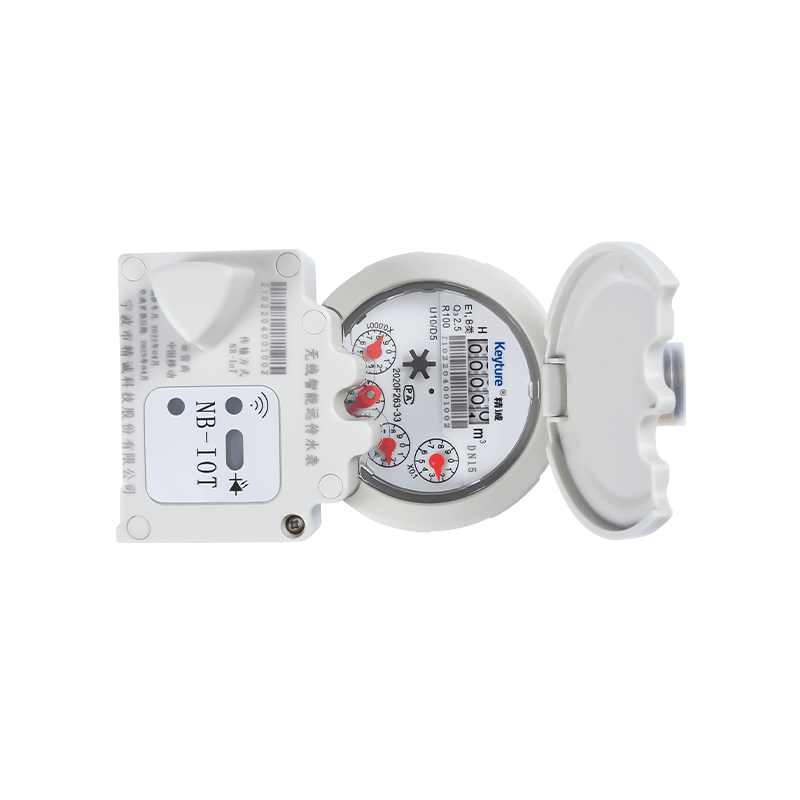

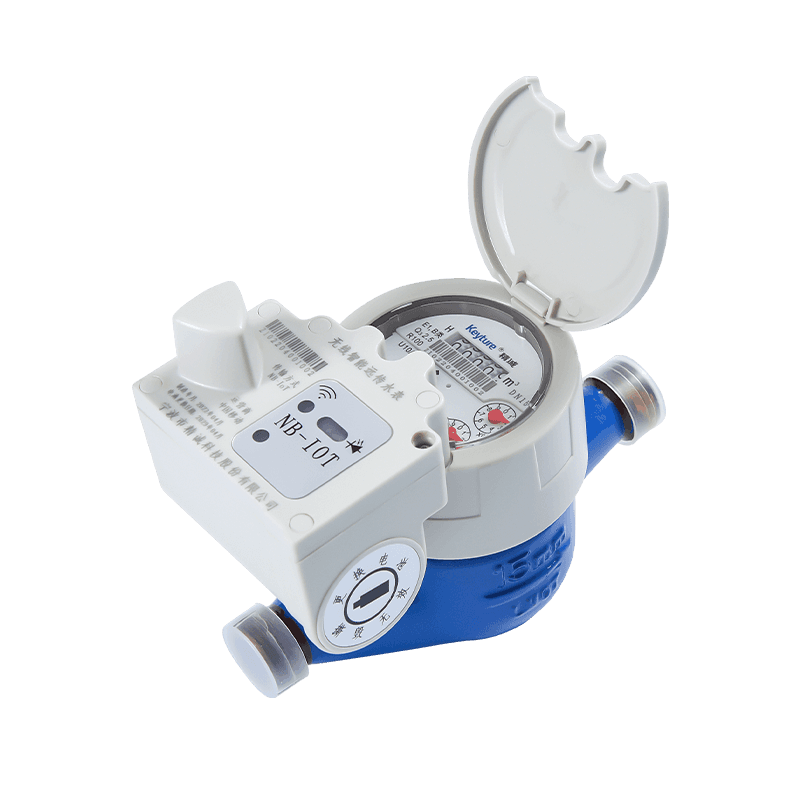

Wireless Remote Dry Type Water Meter

This series of products are wireless remote water meters which separates the mechanic part from intelligent module completely, and upload the water consumption through NB\LORA Internet. In the use of the process of repeated counting problems, the use of algorithms to identify, to ensure the accuracy of data. Mechanical and electrical separation mode installation, good interchangeability, long service life of components

PREV: Wireless Remote Wet Type Water Meter NEXT:Wireless Remote Dry Type Water Meter with Ball Valve

Description

1. Features

● Multi-jet vane wheel.
● Dry type register, magnetic drive,anti-magnetic interference, anti-freezing, long-term clear reading.
● Split type, separate sealing structure, easy to replace and maintain, damp-proof, IP68.
● Replaceable battery chamber design.
● Adopt stable NB\lORA internet signal transmission technology.
● Collect water consumption according to 1L,10L,100L.
● Material: iron, plastic, brass, stainless.
● Provided with lead seal and dust-proof cover.
● Climate and EMC class B\O, E1.

2. Electronic Parameter

Datacomms	Static current	Report	Operating frequency	Transmitted power	Receive sensitivity
Lora	20μA	Hall\Reed switch	470-510MHz	≤20dBm	-136+1dBm
NB-lot	10μA	Hall\Reed switch	B1,B2,B5,B8,NB-lot	≤23dBm	-131+1dBm

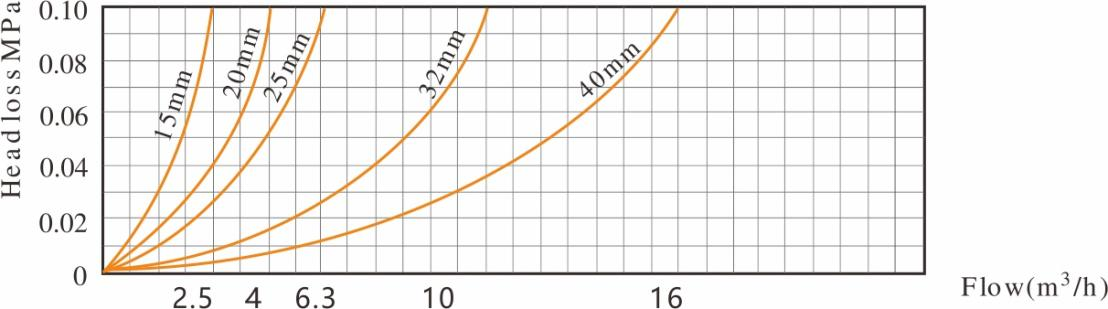

3. Head Loss Curve

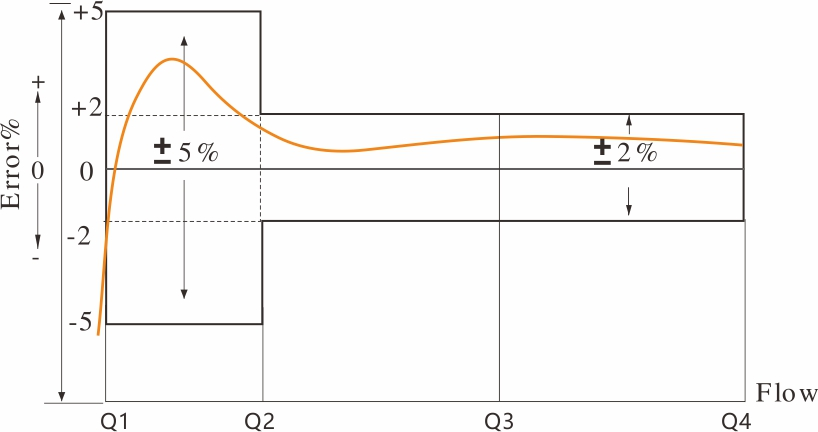

4. Accuracy Error Curve

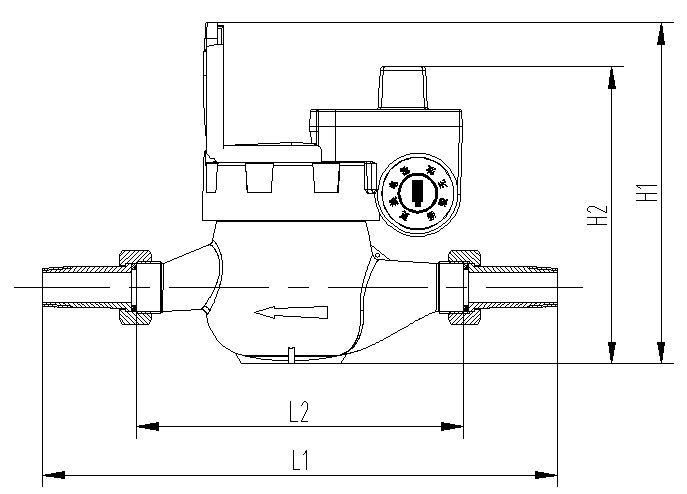

5. Installation Dimension

Item No		LXSGW-15	LXSGW-20
L1	mm	260	295	346
L	mm	165	195	225
H	mm	150	150	150
W	mm	90	90	100
Connection Thread	D(mm)	G3/4"	G1"	G1 1/4"
Connection Thread	d(mm)	R1/2	R3/4	R1
Weight	with unions(kg)
Weight	without unions(kg)	1	1.2

6. Main Technical Parameter

Model number	LXSGW-15		LXSGW-20
Nominal diameter (DN)[mm]	15		20		25		32		40
Ratio Q3/Q1	R80	R100	R80	R100	R80	R100	R80	R100	R80	R100
Overload flow rate (Q4) [m³/h]	3.125	3.125	5	5	7.875	7.875	12.5	12.5	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	4	4	6.3	6.3	10	10	16	16
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.08	0.064	0.126	0.1	0.2	0.16	0.32	0.256
Minimum flow rate (Q1) [m³/h]	0.032	0.025	0.05	0.04	0.08	0.063	0.125	0.1	0.2	0.16
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	HORIZONTAL
