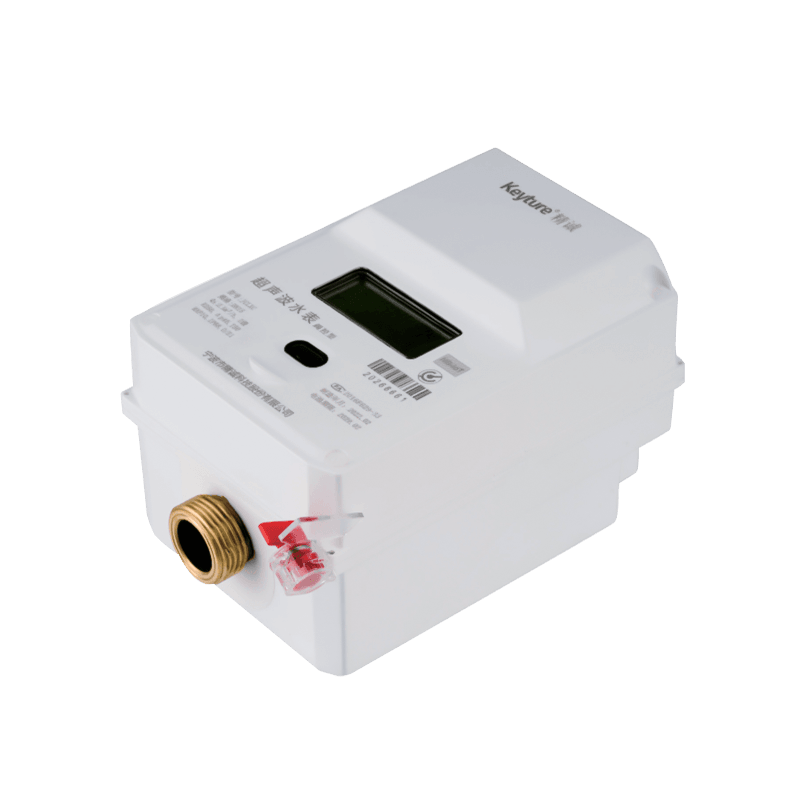

KM07-02
Ultrasonic remote water meter is combined flow sensor with microprocessor, and adopts advanced ultrasonic measurement technology for measuring the water consumption. Low starting flow rate, wide range ratio, high measurement accuracy, stable work, no internal mechanical parts, no wear, not affected by impurities.
Description
1. Features
2. Electronic Parameter
| PN | Pressure Loss | MAP | Working Temperature | Sensor Pressure Loss |
| ≤1.6MPa | ≤0.025MPa | 1.0Mpa or 1.6MPa | 0.1~50 | <25KPa |

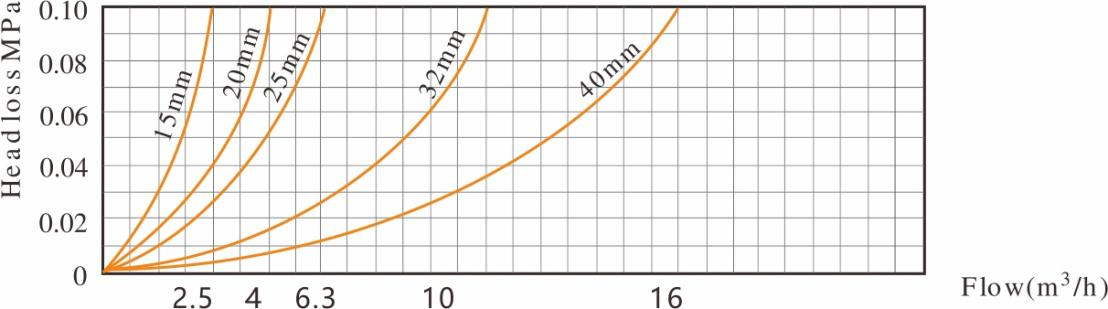

3. Head Loss Curve

4. Accuracy Error Curve

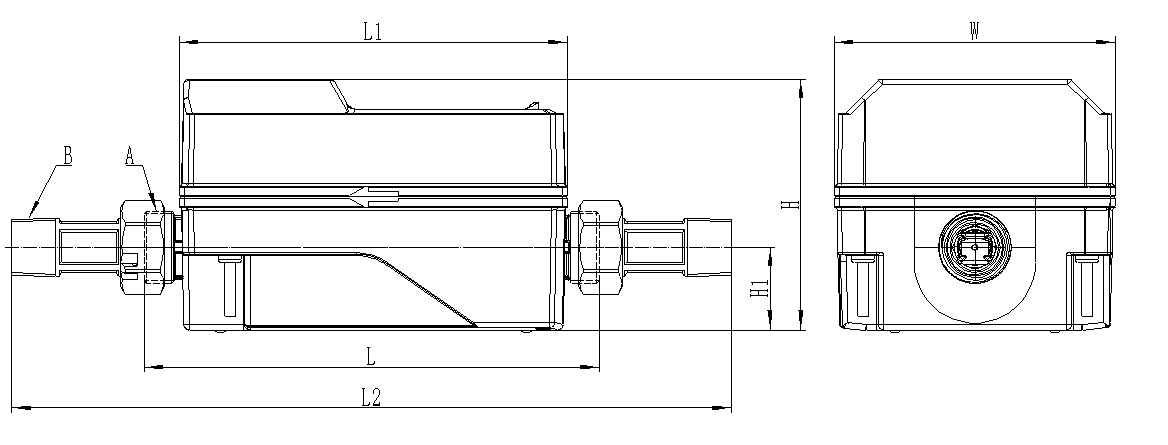

5. Installation Dimension

| Item No | LXCY-15 | LXCY-20 | LXCY-25 | |
| L | mm | 165 | 190 | 225 |
| L1 | mm | 141 | 141 | 141 |
| L2 | mm | 259 | 294 | 345 |
| H | mm | 92 | 92 | 92 |
| H1 | mm | 31 | 28.5 | 25.5 |
| W | mm | 102 | 102 | 102 |
| Connection Thread | D(mm) | G3/4"B | G1B | G11/4B |
| d(mm) | R1/2 | R3/4 | R1 | |
6. Main Technical Data
| DN(MM) | 15 | 20 | 25 |
| Q4 | 3.125 | 5 | 7.875 |
| Q3 | 2.5 | 4 | 6.3 |
| Q2 | 0.016 | 0.026 | 0.04 |
| Q1 | 0.01 | 0.016 | 0.025 |
| Press loss classes: | 40 | 40 | 40 |
