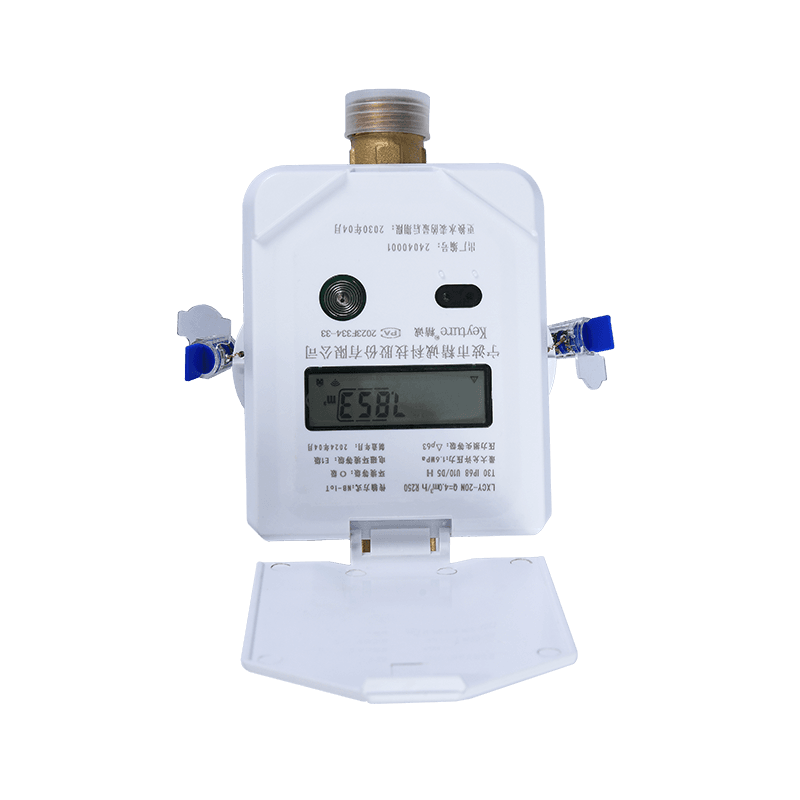

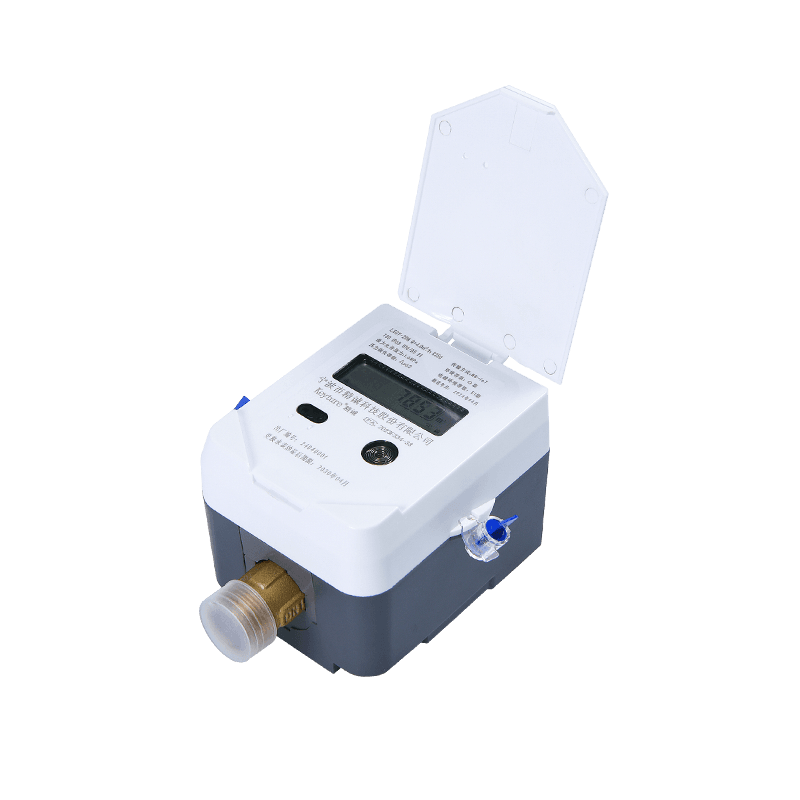

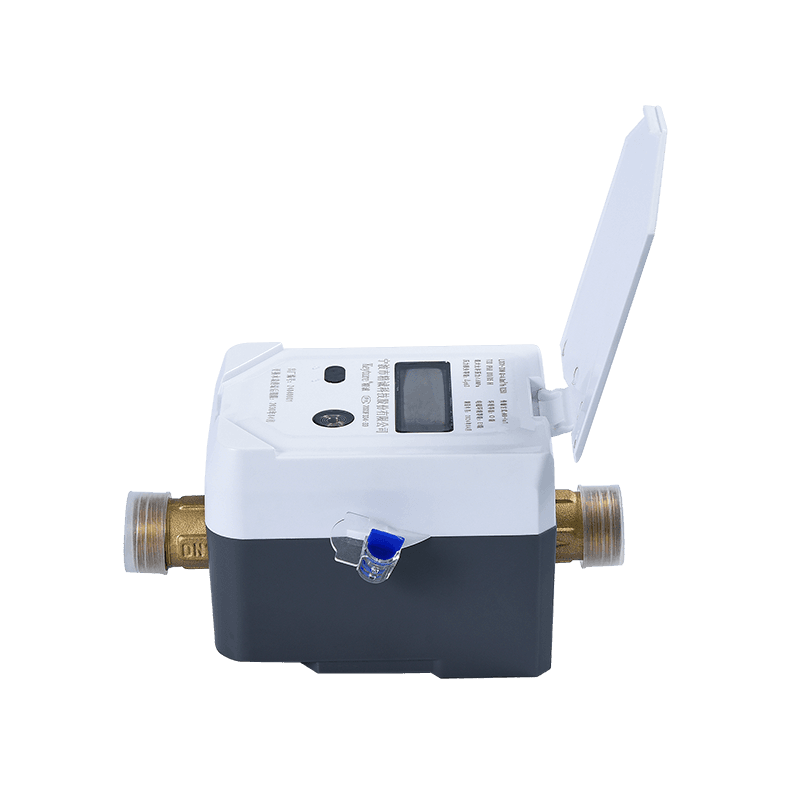

Domestic Ultrasonic Water Meter Dn15~Dn25

Description

1. Features

  • A remote AMR-ready system for M-BUS or wireless communication is convenient for managing users' water consumption.
  • No mechanical move parts, low starting flow rate, bad water quality available, wide range ratio(R250), IP68.
  • Higher measurement accuracy and better stability.
  • Both for cold water.
  • Digital display(6-years battery:3.6V)
  • Power consumption <0.2mW
  • Detect both forward and reverse flow.
  • Provided with lead seal and dust-proof cover
  • Accuracy grade:Class 2;Press loss class:△P63;Water press class:1.6Mpa;Flow profile sensitivity classesU10D5
  • Flow display range:0m3~9999.9999m3
  • Method of communication: NB-IOT OR photoelectric interface
  • Installation: Horizontal or vertical
  • Environment O,E1

2. Electronic Parameter

PN

Pressure Loss

MAP

Working Temperature

Sensor Pressure Loss

≤1.6MPa

≤0.025MPa

1.6MPa

0.1~55

<25KPa


3. Head Loss Curve




4. Accuracy Error Curve

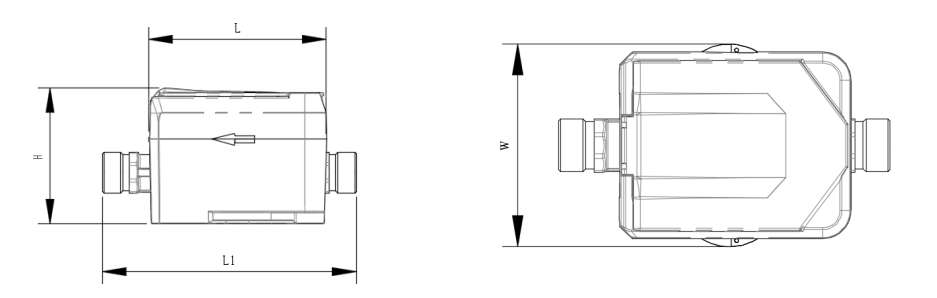

5. Installation Dimension

Item No

LXCY-15

LXCY-20

LXCY-25

L

mm

260

300

345

L1

mm

165

195

225

H

mm

87.25

87.25

87.25

W

mm

100

100

100

Connection Thread

D(mm)

G3/4B

G1B

G11/4B

d(mm)

R1/2

R3/4

R1

Weight

with unions(kg)

0.84KG

0.92KG

1.2KG



6. Flow parameter

DN Q3(M3/H) Q2(M3/H) Q1(M3/H) Q4(M3/H)
DN15 2.5 0.016 0.01 3.125
DN20 4 0.0256 0.016 5
DN25 6.3 0.0403 0.0252 7.875
