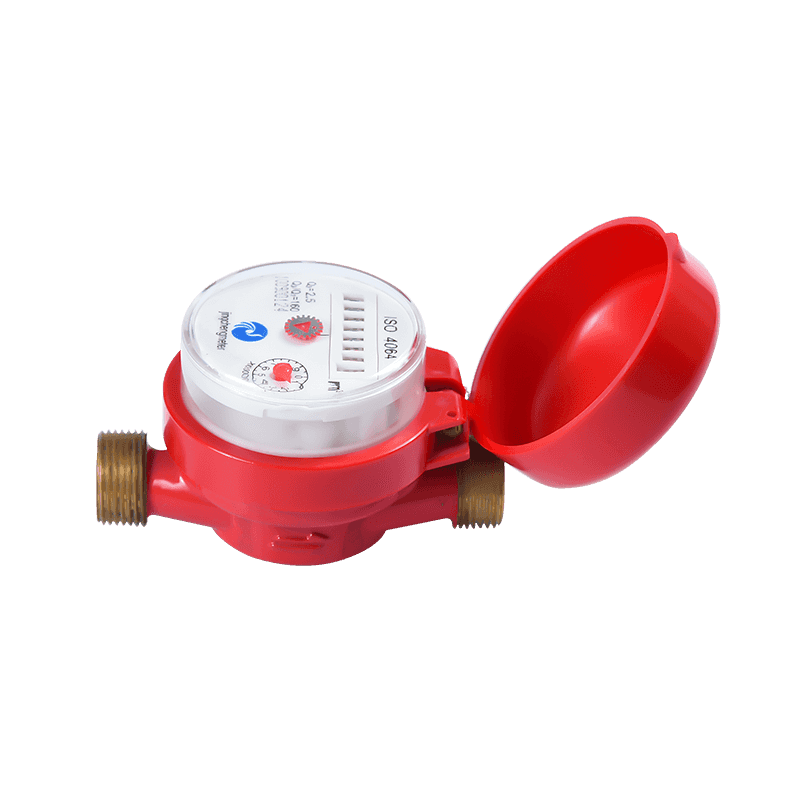

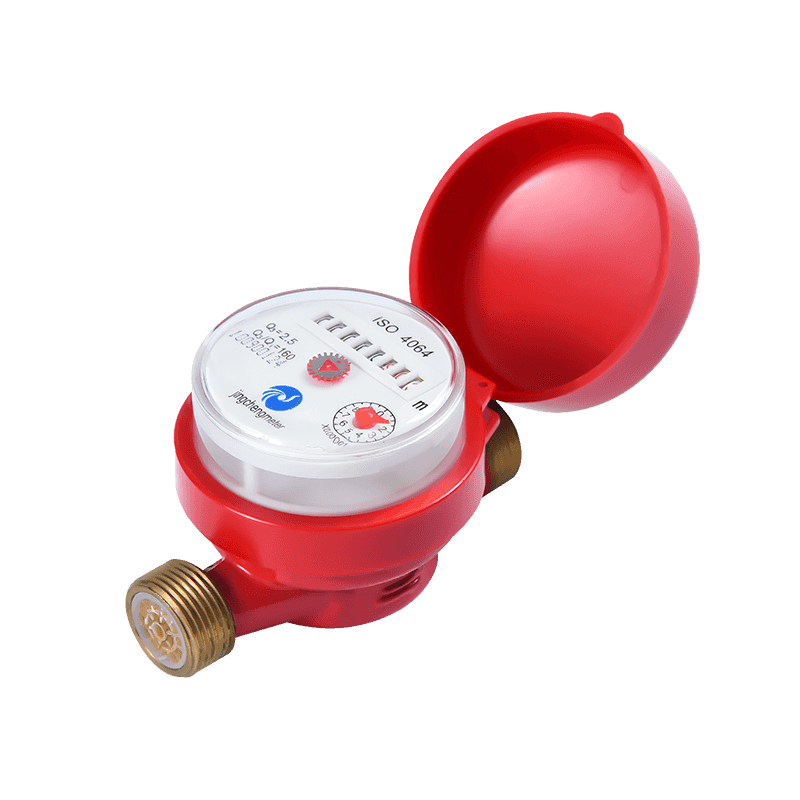

KM05-25
Used for household or residential units to measure, memorize, and display the volume of hot water flowing through the pipeline.Small size, lightweight, simple structure, high-precision body shell processing, and internal plastic material requirements.
Description
1. Features
2. Head Loss Curve
3. Accuracy Error Curve
4. Installation Dimension

| Item No | LXSG-15 | |
| L | mm | 110 |
| L1 | mm | 205 |
| H | mm | 75 |
| W | mm | 75 |
| Connection Thread | D(mm) | G3/4" |
| d(mm) | R1/2 | |
| Weight | without unions kg |
0.5kg |
5. Main Technical Data
|
Model Number |
LXSG-15 |
|
|
|
|
||||||||||
|
Nominal diameter (DN)[mm] |
15 |
20 |
25 |
32 |
40 |
||||||||||
|
Ratio Q3/Q1 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
R80 |
R100 |
R160 |
|
Overload flow rate (Q4) [m³/h] |
3.125 |
3.125 |
3.125 |
5 |
5 |
5 |
7.875 |
7.875 |
7.875 |
12.5 |
12.5 |
12.5 |
20 |
20 |
20 |
|
Permanent flow rate (Q3) [m³/h] |
2.5 |
2.5 |
2.5 |
4 |
4 |
4 |
6.3 |
6.3 |
6.3 |
10 |
10 |
10 |
16 |
16 |
16 |
|
Transitional flow rate (Q2) [m³/h] |
0.05 |
0.04 |
0.025 |
0.08 |
0.064 |
0.04 |
0.126 |
0.1 |
0.063 |
0.2 |
0.16 |
0.1 |
0.32 |
0.256 |
0.16 |
|
Minimum flow rate (Q1) [m³/h] |
0.032 |
0.025 |
0.015 |
0.05 |
0.04 |
0.025 |
0.08 |
0.063 |
0.039375 |
0.125 |
0.1 |
0.0625 |
0.2 |
0.16 |
0.1 |
|
Accuracy class |
2 |
||||||||||||||
|
Maximum permissible error for the |
±5% |
||||||||||||||
|
Maximum permissible error for |
±2% for water having a temperature ≤30℃ |
||||||||||||||
|
Temperature class |
T90 |
||||||||||||||
|
Water pressure classes |
MAP 16 |
||||||||||||||
|
Pressure-loss classes |
△P63 |
||||||||||||||
|
Indicating range[m³] |
99 999 |
||||||||||||||
|
Resolution of the |
0.00005 |
||||||||||||||
|
Flow profile sensitivity classes |
U10 D5 |
||||||||||||||
|
Orientation limitation |
HORIZONTAL |
||||||||||||||
