KM05-04

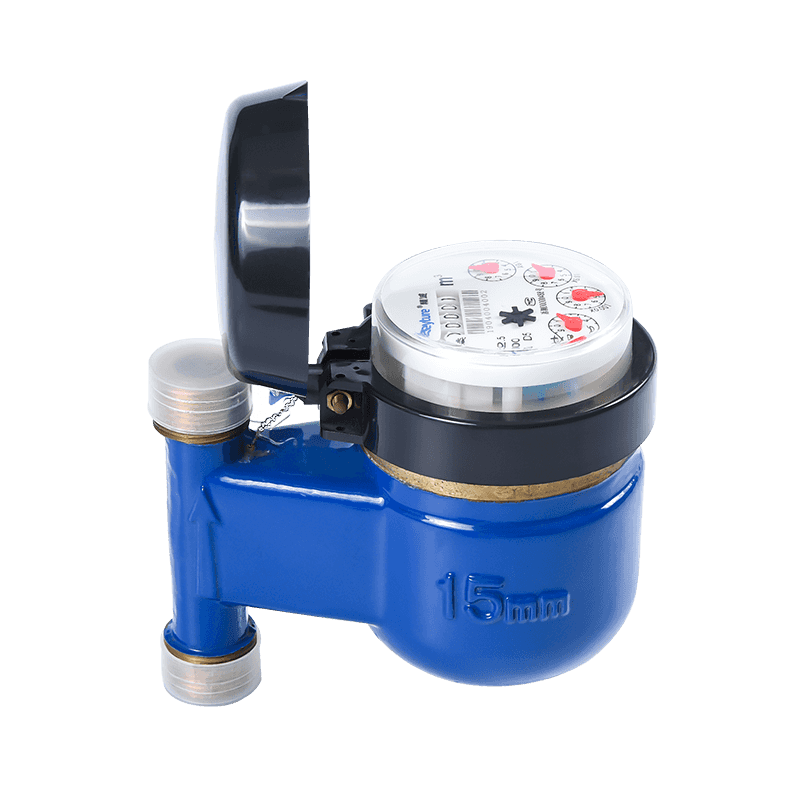

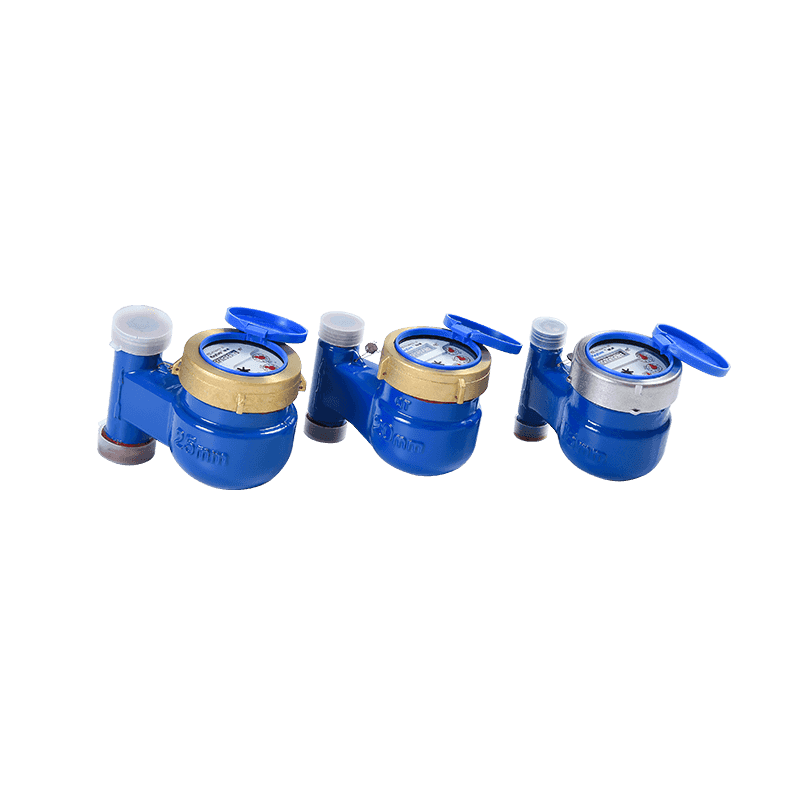

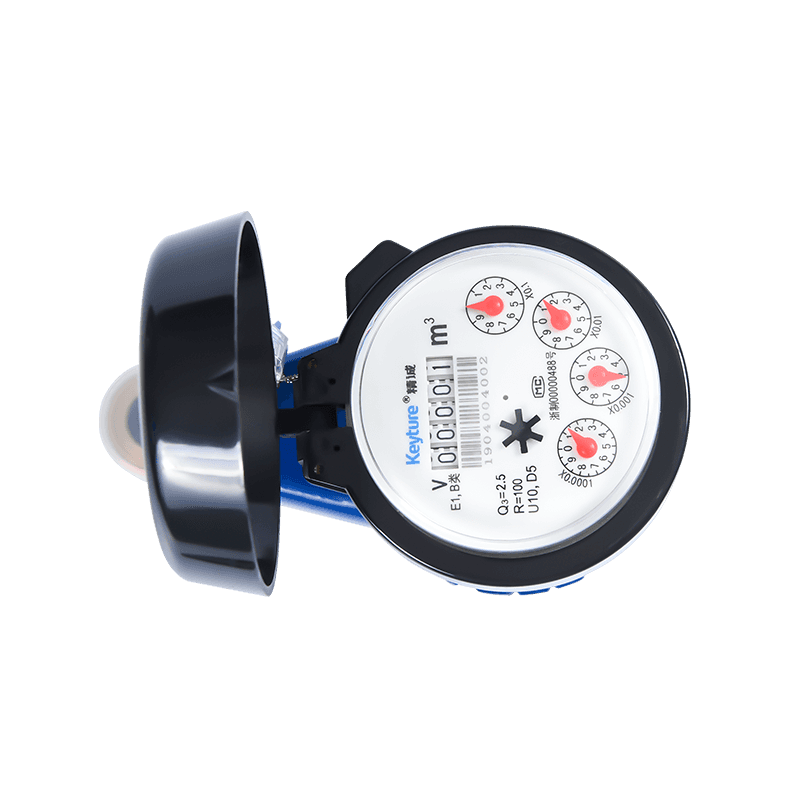

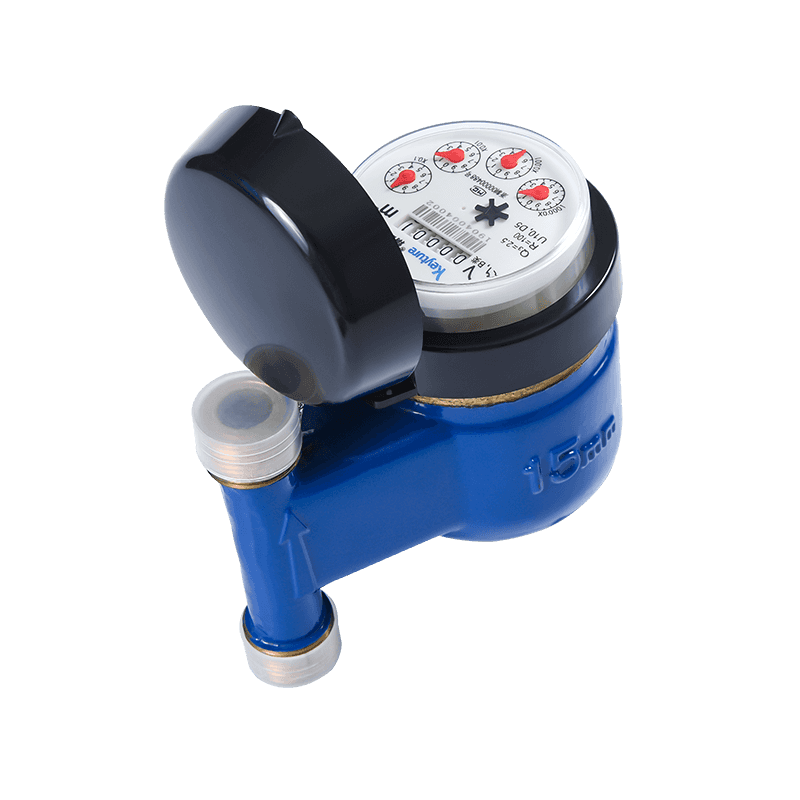

Vertical Dry Type Vane Wheel Mechanical Cold Water Meter

Name: Vertical Dry Type Vane Wheel Mechanical Cold Water Meter
Rating: 5 (99 reviews)

PREV: Plastic Cover Dry Type Vane Wheel Multi Jet Water Meter with Male Fittings NEXT:Wet Type Semi-Liquid Sealed Multi Jet Brass Body Water Meter

Description

1. Application

Measuring, memorizing and displaying the water consumption passing through the pipeline. Vertical installation, measuring water flow speed, water quality requirements are not high, magnetic drive dry movement design to ensure long-term clear reading, suitable for colder northern regions.

2. Features

● Adopt multi-jet type.

● Dry type register, magnetic drive,anti-magnetic interference,anti-freezing, long-term clear reading, Tamper proof.

● Material: Brass, iron, plastic Body for option.

● Non-return valve is available.

● Un-affected by grit and particulates.

● Provided with lead seal and dustproof cover.

● Confirm to ISO4064.

● Available for IP68.

3. Head Loss Curve

4. Accuracy Error Curve

5. Installation Dimension

Item No		LXSGL-15	LXSGL-20	LXSGL-25
L	mm	193	210	225
L1	mm	98	105	110
H	mm	115	115	115
W	mm	100	100	100
Connection Thread	D(mm)	G3/4"	G1"	G1 1/4"
Connection Thread	d(mm)	R1/2	R3/4	R1
Weight	with unions(kg)
Weight	without unions(kg)	1.5	1.7	1.8

6. Main Technical Data

Model number	LXSGL-15			LXSGL-20			LXSGL-25
Nominal diameter (DN)[mm]	15			20			25			32			40
Ratio Q3/Q1	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160	R80	R100	R160
Overload flow rate (Q4) [m³/h]	3.125	3.125	3.125	5	5	5	7.875	7.875	7.875	12.5	12.5	12.5	20	20	20
Permanent flow rate (Q3) [m³/h]	2.5	2.5	2.5	4	4	4	6.3	6.3	6.3	16	16	16	25	25	25
Transitional flow rate (Q2) [m³/h]	0.05	0.04	0.025	0.08	0.064	0.04	0.126	0.1008	0.063	0.2	0.16	0.1	0.32	0.256	0.16
Minimum flow rate (Q1) [m³/h]	0.03125	0.025	0.015625	0.05	0.04	0.025	0.07875	0.063	0.039375	0.125	0.1	0.0625	0.2	0.16	0.1
Accuracy class	2
Maximum permissible error for the lower flow rate zone (MPEι)	±5%
Maximum permissible error for the upper flow rate zone (MPEμ)	±2% for water having a temperature ≤30℃ ±3% for water having a temperature ＞30℃
Temperature class	T30,T50
Water pressure classes	MAP 16
Pressure-loss classes	△P63
Indicating range[m³]	99 999
Resolution of the indicating device[m³]	0.00005
Flow profile sensitivity classes	U10 D5
Orientation limitation	VERTICAL
